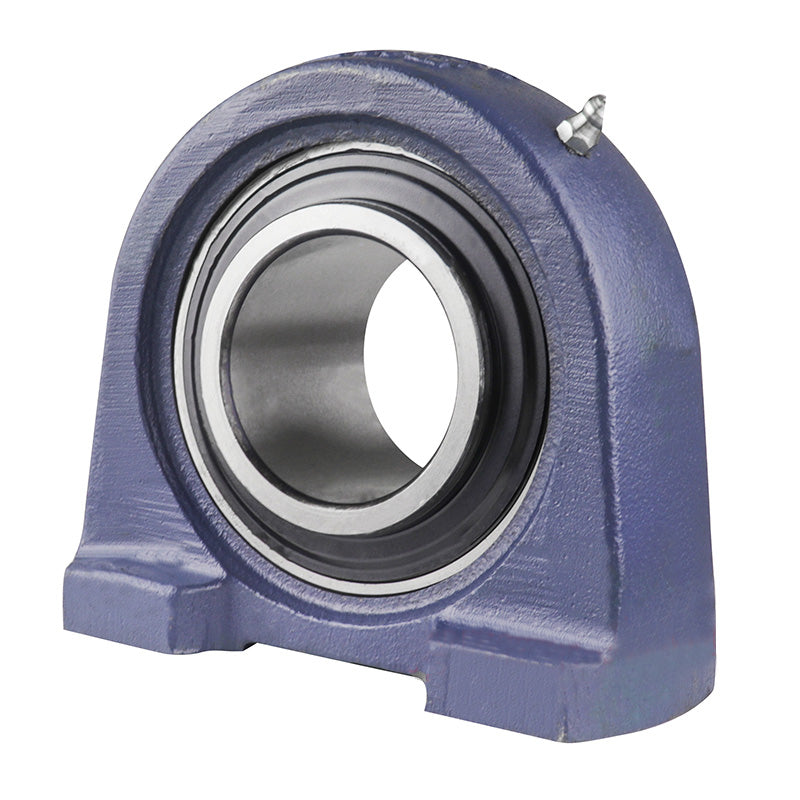

• UCPA207-21 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-5/16 inch Bore Insert
1 1

SKU: UCPA.207-21

UCPA207-21 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-5/16 inch Bore Insert

UCPA207-21 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-5/16 inch Bore Insert
$32.67 ex VAT
$32.67 ex VAT
Sale Sold out

In stock

Price Break
3+ $21.89
4+ $20.66
9+ $20.41
19+ $20.17
49+ $19.92
99+ $19.67
499+ $18.44
999+ $18.20
1999+ $17.95
2999+ $17.71
4999+ $17.21

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
33.33mm = 1.312 (1-5/16) inch
Style:
UCPA
Bolt Hole Centres:
80.17mm = 3.156 (3-5/32) inch
Technical
d 1-5/16 inch
h 1-7/8"
a 4-11/32"
e 3-5/32"
b 2-5/32"
s M14
g 1/2"
w 3-3/4"
D 25/32"
Bi 1.6890"
n 0.6890"
Bolt Size M14
Weight 1.7 kg
Dynamic load 2010 kgf
Static load 1390 kgf
