• UCPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert
1 1

SKU: UCPA.208

UCPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert

UCPA208 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert
$31.01 ex VAT
$31.01 ex VAT
Sale Sold out

Equivalent to: SNP40

In stock

Price Break
3+ $20.77
4+ $19.60
9+ $19.37
19+ $19.14
49+ $18.90
99+ $18.67
499+ $17.50
999+ $17.27
1999+ $17.04
2999+ $16.80
4999+ $16.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

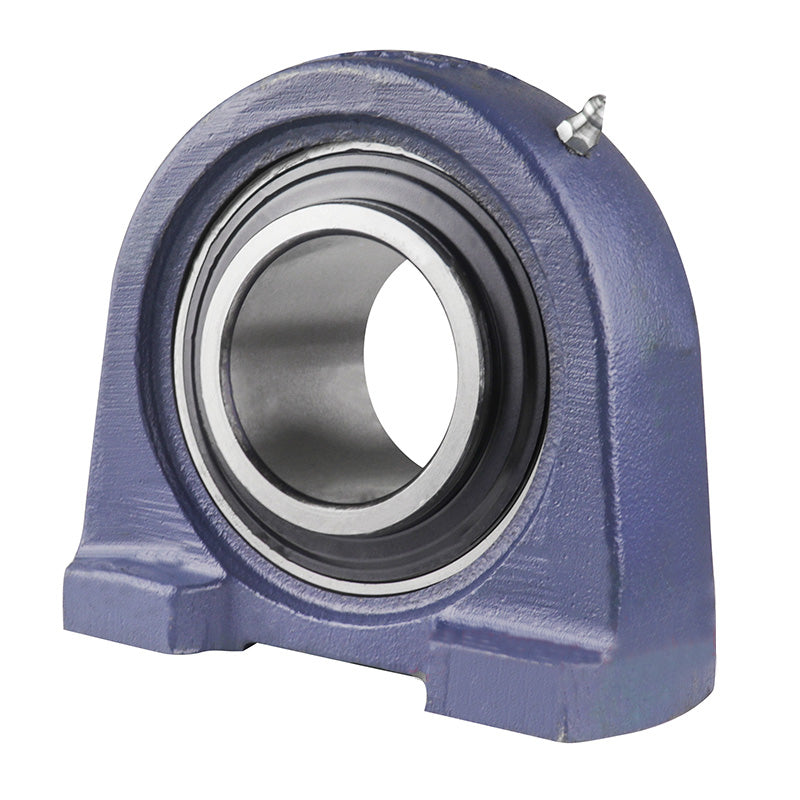

UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
40mm
Style:
UCPA
Bolt Hole Centres:
84mm
Technical
d 40mm
h 49.2mm
a 116mm
e 84mm
b 58mm
s M14
g 13mm
w 100mm
D 20mm
Bi 49.2mm
n 19mm
Bolt Size M14
Weight 2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
Rec max speed 4000 rpm
