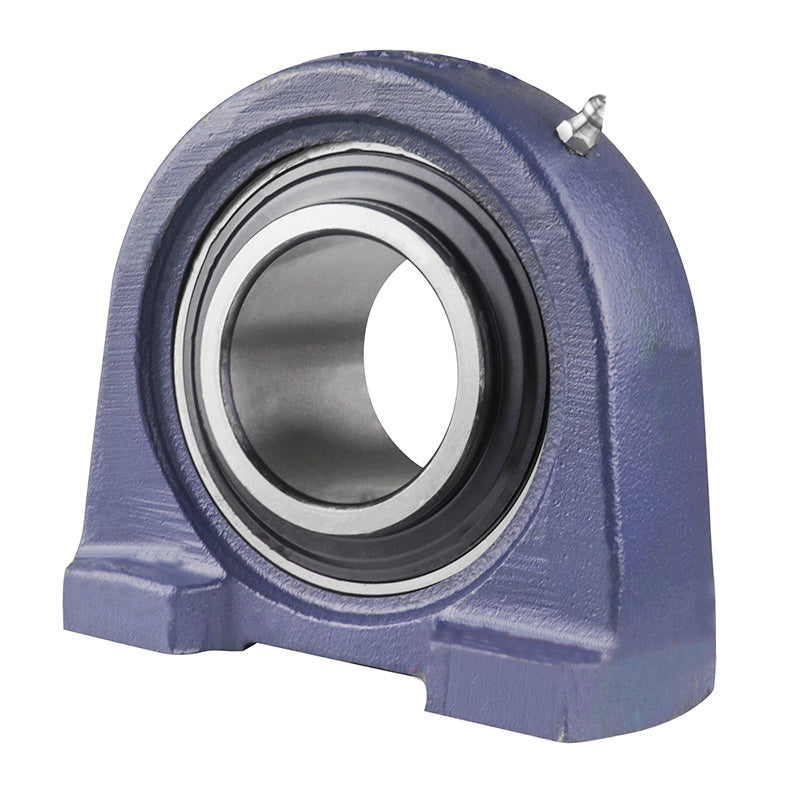

• UCPA208-25 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-9/16 inch Bore Insert
1 1

SKU: UCPA.208-25

UCPA208-25 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-9/16 inch Bore Insert

UCPA208-25 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-9/16 inch Bore Insert
$35.08 ex VAT
$35.08 ex VAT
Sale Sold out

In stock

Price Break
3+ $23.49
4+ $22.17
9+ $21.91
19+ $21.65
49+ $21.38
99+ $21.12
499+ $19.80
999+ $19.53
1999+ $19.27
2999+ $19.01
4999+ $18.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
39.69mm = 1.563 (1-9/16) inch
Style:
UCPA
Bolt Hole Centres:
84.13mm = 3.312 (3-5/16) inch
Technical
d 1-9/16 inch
h 1-15/16"
a 4-9/16"
e 3-5/16"
b 2-9/32"
s M14
g 1/2"
w 3-15/16"
D 25/32"
Bi 1.9370"
n 0.7480"
Bolt Size M14
Weight 2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
