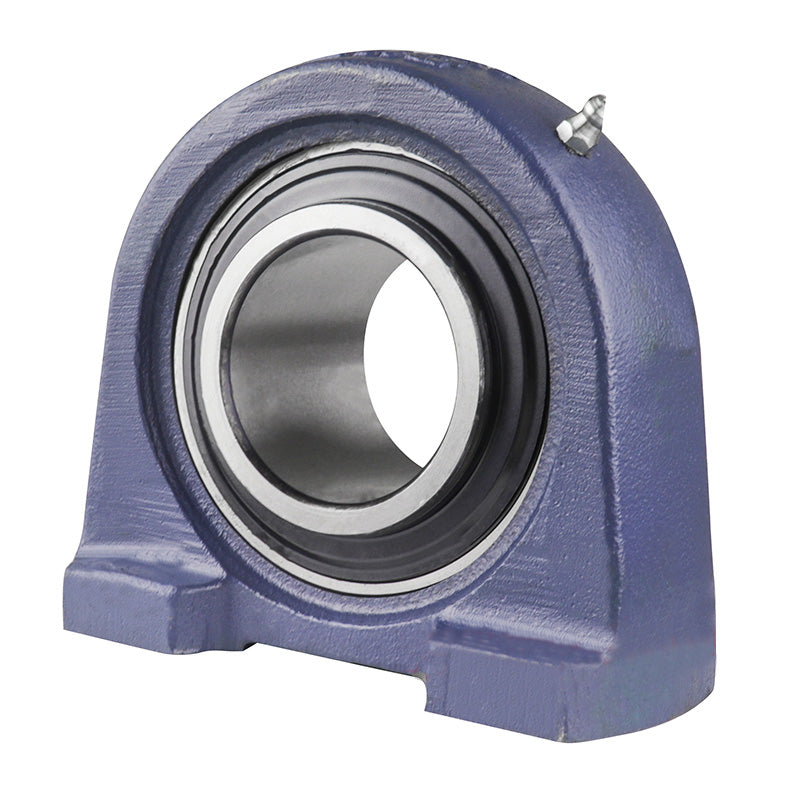

• UCPA209-28 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-3/4 inch Bore Insert
1 1

SKU: UCPA.209-28

UCPA209-28 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-3/4 inch Bore Insert

UCPA209-28 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-3/4 inch Bore Insert
$39.33 ex VAT
$39.33 ex VAT
Sale Sold out

In stock

Price Break
3+ $26.34
4+ $24.86
9+ $24.57
19+ $24.27
49+ $23.98
99+ $23.68
499+ $22.20
999+ $21.90
1999+ $21.61
2999+ $21.31
4999+ $20.72

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
44.45mm = 1.75 (1-3/4) inch
Style:
UCPA
Bolt Hole Centres:
90.09mm = 3.547 (3-35/64) inch
Technical
d 1-3/4 inch
h 2-9/64"
a 4-23/32"
e 3-35/64"
b 2-3/8"
s M14
g 1/2"
w 4-1/4"
D 1"
Bi 1.9370"
n 0.7480"
Bolt Size M14
Weight 2.2 kg
Dynamic load 2560 kgf
Static load 1810 kgf
