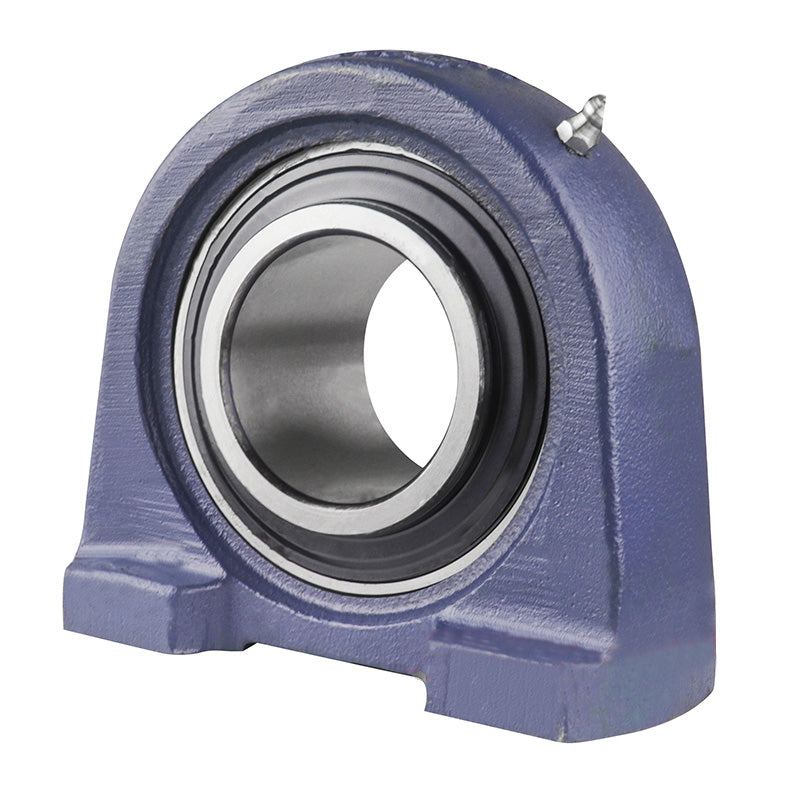

• UCPA210-30 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-7/8 inch Bore Insert
1 1

SKU: UCPA.210-30

UCPA210-30 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-7/8 inch Bore Insert

UCPA210-30 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-7/8 inch Bore Insert
$45.61 ex VAT
$45.61 ex VAT
Sale Sold out

In stock

Price Break
3+ $30.56
4+ $28.84
9+ $28.50
19+ $28.15
49+ $27.81
99+ $27.47
499+ $25.75
999+ $25.41
1999+ $25.06
2999+ $24.72
4999+ $24.03

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
47.63mm = 1.875 (1-7/8) inch
Style:
UCPA
Bolt Hole Centres:
94.06mm = 3.703 (3-45/64) inch
Technical
d 1-7/8 inch
h 2-1/4"
a 5-1/8"
e 3-45/64"
b 2-17/32"
s M16
g 9/16"
w 4-9/16"
D 1"
Bi 2.0315"
n 0.7480"
Bolt Size M16
Weight 2.8 kg
Dynamic load 2750 kgf
Static load 2020 kgf
