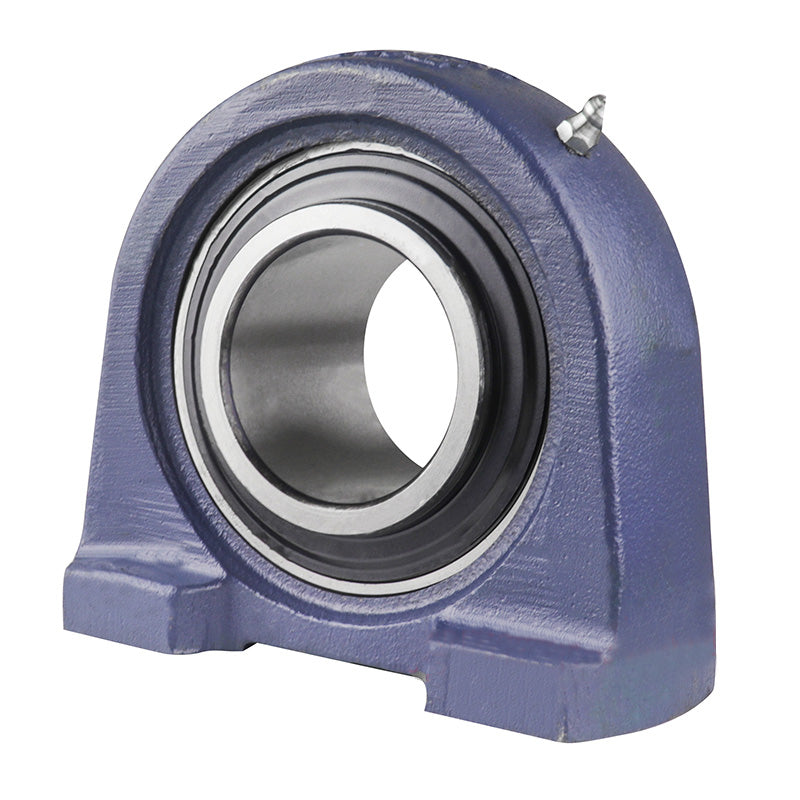

• UCPA210-31 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-15/16 inch Bore Insert
1 1

SKU: UCPA.210-31

UCPA210-31 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-15/16 inch Bore Insert

UCPA210-31 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 1-15/16 inch Bore Insert
$46.86 ex VAT
$46.86 ex VAT
Sale Sold out

In stock

Price Break
3+ $31.39
4+ $29.63
9+ $29.28
19+ $28.92
49+ $28.57
99+ $28.22
499+ $26.45
999+ $26.10
1999+ $25.75
2999+ $25.40
4999+ $24.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
EU Budget - Economy Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
UCPA
Bolt Hole Centres:
94.06mm = 3.703 (3-45/64) inch
Technical
d 1-15/16 inch
h 2-1/4"
a 5-1/8"
e 3-45/64"
b 2-17/32"
s M16
g 9/16"
w 4-9/16"
D 1"
Bi 2.0315"
n 0.7480"
Bolt Size M16
Weight 2.8 kg
Dynamic load 2750 kgf
Static load 2020 kgf
