SKU: UCPA.211

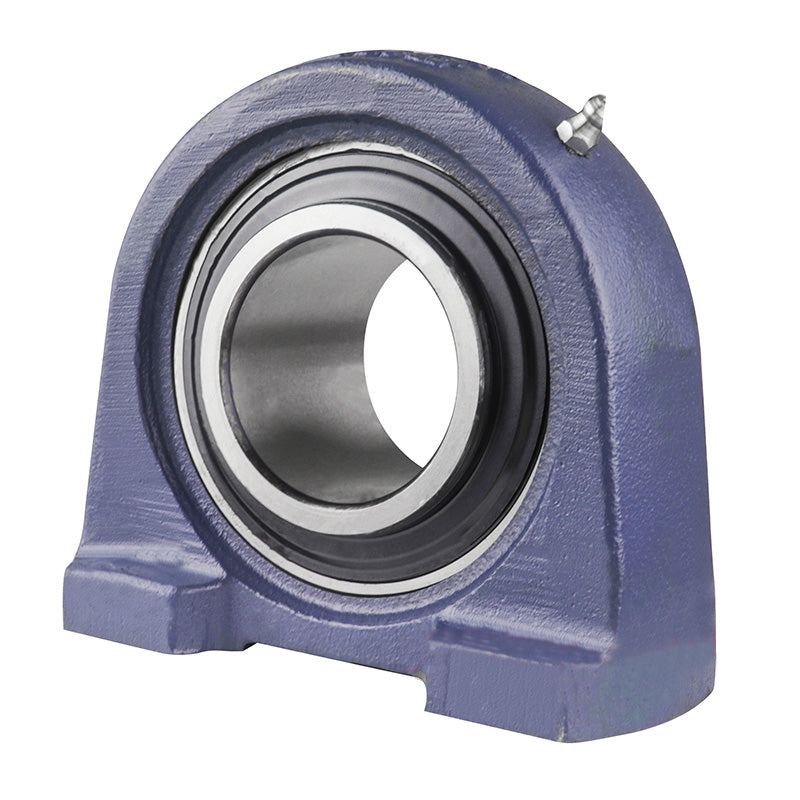

UCPA211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert
UCPA211 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 55mm Bore Insert
Out of stock
Description
Description
|
UCPA or SNP Series Small Footprint Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCPA
- Bolt Hole Centres:
- 104mm

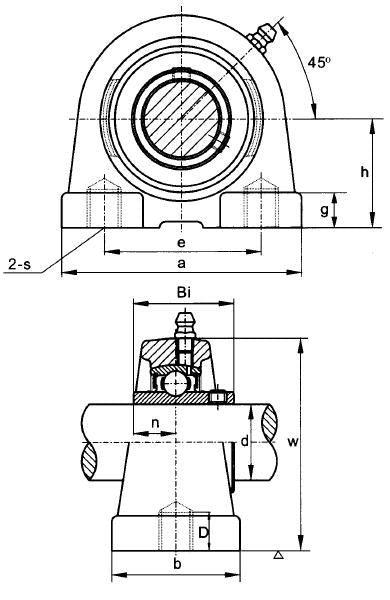

Technical
Technical
| d | 55mm |
|---|---|
| h | 63.5mm |
| a | 140mm |
| e | 104mm |
| b | 66mm |
| s | M16 |
| g | 25mm |
| w | 14mm |
| D | 125mm |
| Bi | 55.6mm |
| n | 22.2mm |
| Bolt Size | M16 |
| Weight | 3.26kg |
