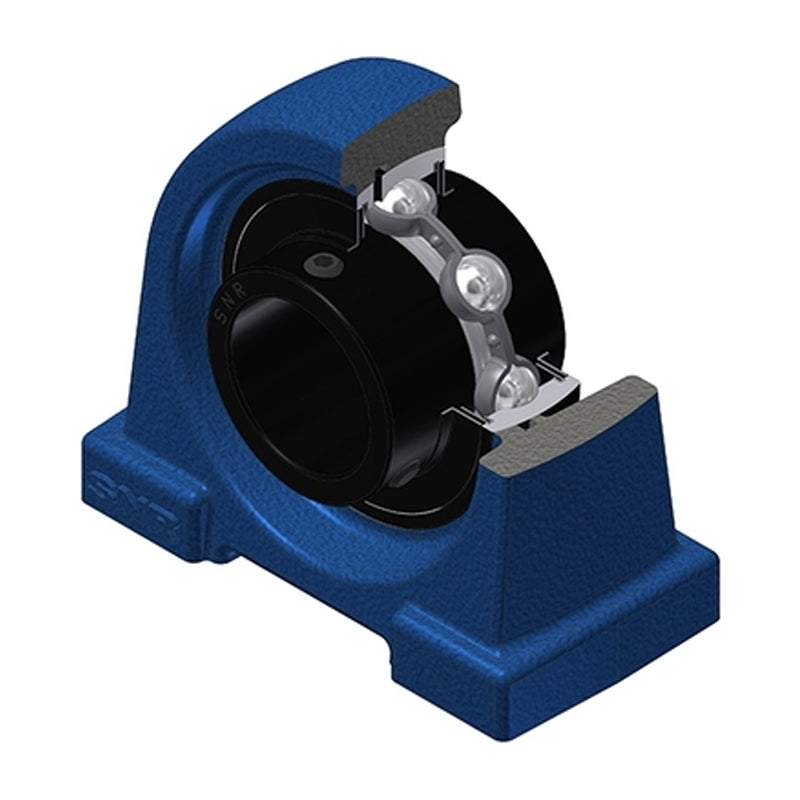

• SNR UCPA206T20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCPA206T20-SNR

SNR UCPA206T20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCPA206T20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$53.01 ex VAT
$53.01 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.49
4+ $37.90
9+ $37.10
19+ $35.90
49+ $35.10
99+ $33.11
499+ $27.92
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCPA
Bolt Hole Centres:
66mm
Technical
--- Dimensions
Shaft diameter 30mm
A 48mm
A1 25mm
B 38.1mm
E 18mm
H 42.9mm
H1 13mm
H2 84mm
J 66mm
L 94mm
L1 30mm
N M14
S 15.9mm
G M6x1
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
Operating temperature min. -20°C
Operating temperature max. 200°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 1.12 kg
