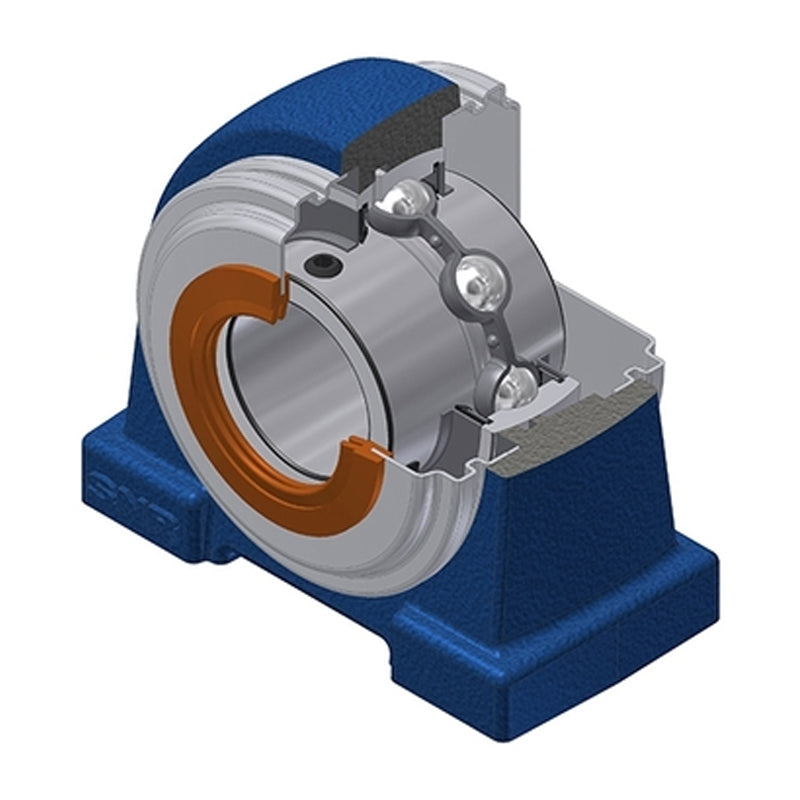

• SNR UCPA207CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCPA207CC-SNR

SNR UCPA207CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPA207CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$103.08 ex VAT
$103.08 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.79
4+ $73.69
9+ $72.14
19+ $69.81
49+ $68.26
99+ $64.38
499+ $54.30
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UCPA
Bolt Hole Centres:
80mm
Technical
--- Dimensions
Shaft diameter 35mm
A 48mm
A1 27mm
B 42.9mm
E 20mm
H 47.6mm
H1 13mm
H2 95mm
J 80mm
L 110mm
L1 30mm
N M14
S 17.5mm
Dz 80mm
Z 60mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.588 kg
