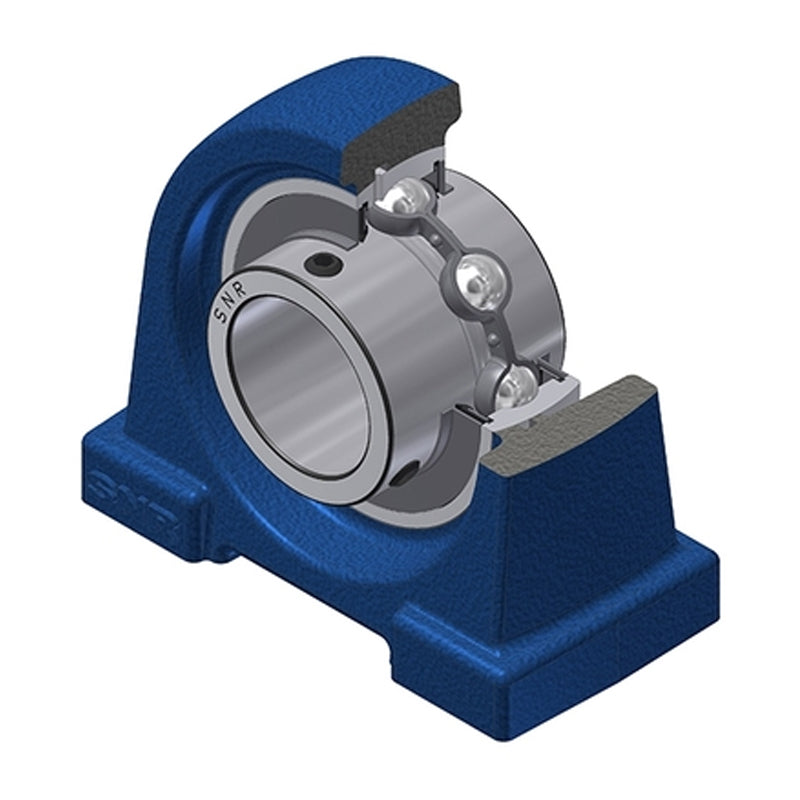

• SNR UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPA209-SNR

SNR UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days

SNR UCPA209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
$66.59 ex VAT
$66.59 ex VAT
Sale Sold out

In stock

Price Break
3+ $44.61
4+ $42.10
9+ $41.60
19+ $41.10
49+ $40.60
99+ $40.10
499+ $37.59
999+ $37.09
1999+ $36.59
2999+ $36.09
4999+ $35.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCPA
Bolt Hole Centres:
90mm
Technical
--- Dimensions
Shaft diameter 45mm
A 60mm
A1 32mm
B 49.2mm
E 25mm
H 54.2mm
H1 13mm
H2 108mm
J 90mm
L 120mm
L1 42mm
N M14
S 19mm
G M6x1
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 2.18 kg
