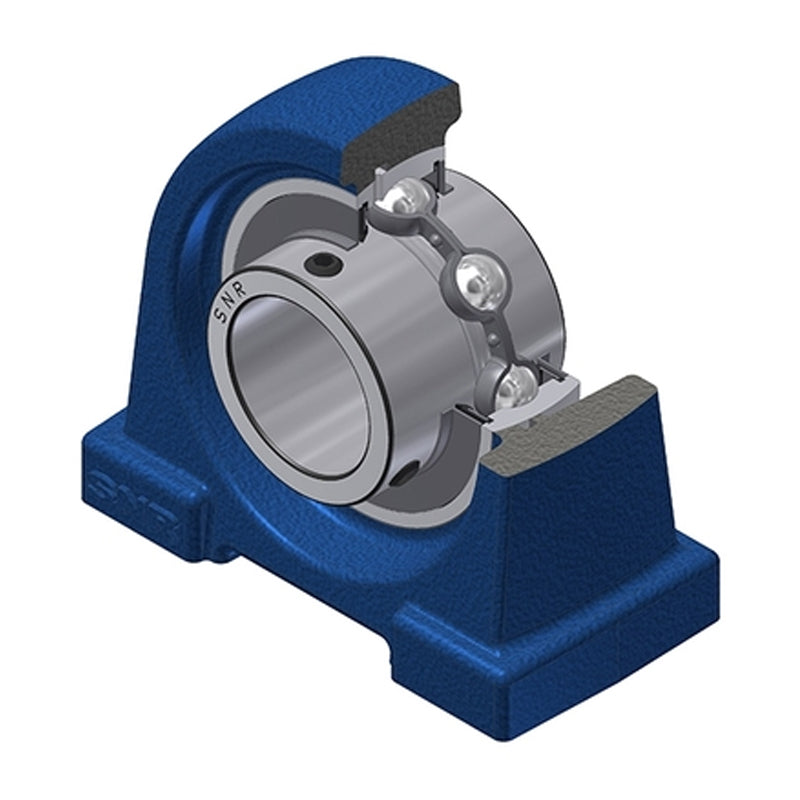

• SNR UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
  • SNR
1 2

SKU: UCPA210-SNR

SNR UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert

SNR UCPA210 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert
$70.45 ex VAT
$70.45 ex VAT
Sale Sold out

In stock

Price Break
3+ $47.19
4+ $44.54
9+ $44.01
19+ $43.48
49+ $42.95
99+ $42.42
499+ $39.76
999+ $39.23
1999+ $38.70
2999+ $38.17
4999+ $37.11

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCPA
Bolt Hole Centres:
94mm
Technical
--- Dimensions
Shaft diameter 50mm
A 60mm
A1 32mm
B 51.6mm
E 25mm
H 57.2mm
H1 14mm
H2 116mm
J 94mm
L 130mm
L1 35mm
N M16
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 2.6 kg
