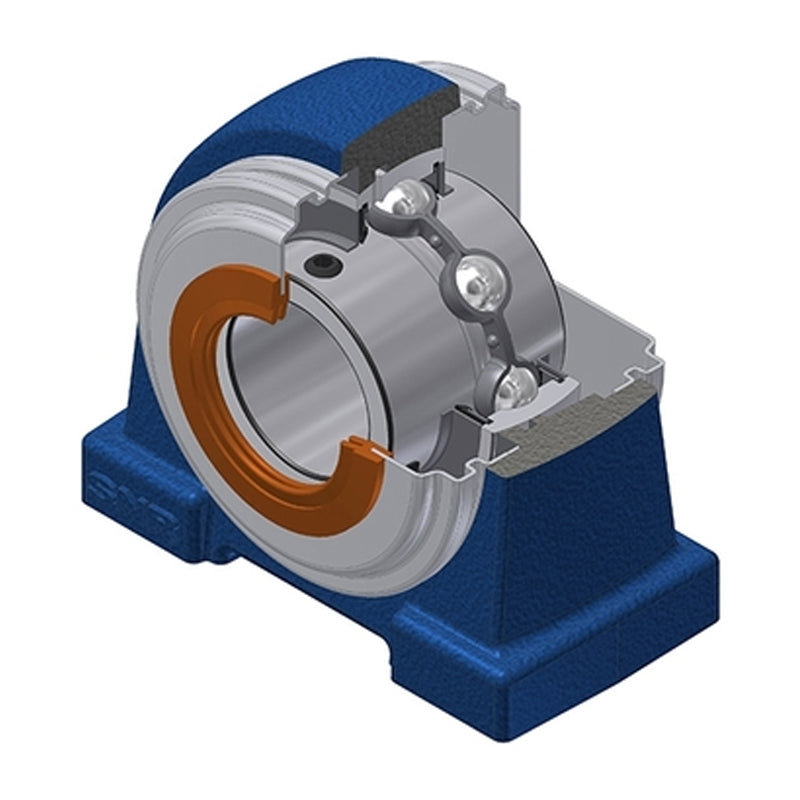

• SNR UCPA210CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCPA210CC-SNR

SNR UCPA210CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPA210CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 50mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$117.86 ex VAT
$117.86 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.80
4+ $84.26
9+ $82.48
19+ $79.82
49+ $78.05
99+ $73.61
499+ $62.08
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCPA
Bolt Hole Centres:
94mm
Technical
--- Dimensions
Shaft diameter 50mm
A 60mm
A1 32mm
B 51.6mm
E 25mm
H 57.2mm
H1 14mm
H2 116mm
J 94mm
L 130mm
L1 35mm
N M16
S 19mm
Dz 100mm
Z 75.6mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 2.73 kg
