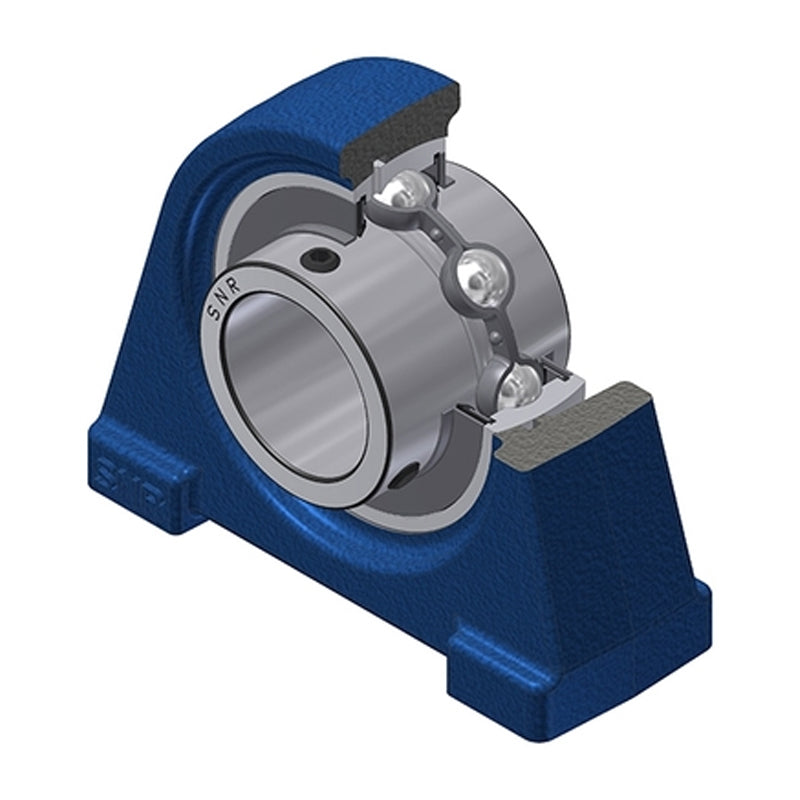

• SNR UCPAE201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPAE201-SNR

SNR UCPAE201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert - Allow 2-3 Days

SNR UCPAE201 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 12mm Bore Insert - Allow 2-3 Days
$29.88 ex VAT
$29.88 ex VAT
Sale Sold out

In stock

Price Break
3+ $20.02
4+ $18.89
9+ $18.67
19+ $18.44
49+ $18.22
99+ $17.99
499+ $16.87
999+ $16.64
1999+ $16.42
2999+ $16.19
4999+ $15.74

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
12mm
Style:
UCPAE
Bolt Hole Centres:
50.8mm
Technical

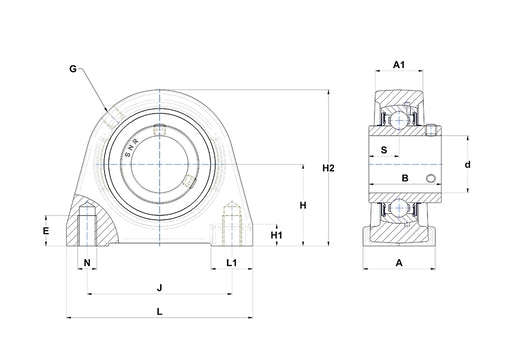

--- Dimensions
Shaft diameter 12mm
A 32mm
A1 19mm
B 31mm
E 10mm
H 33.3mm
H1 9mm
H2 64mm
J 50.8mm
L 65mm
L1 18mm
N M8
S 12.7mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.51 kg
