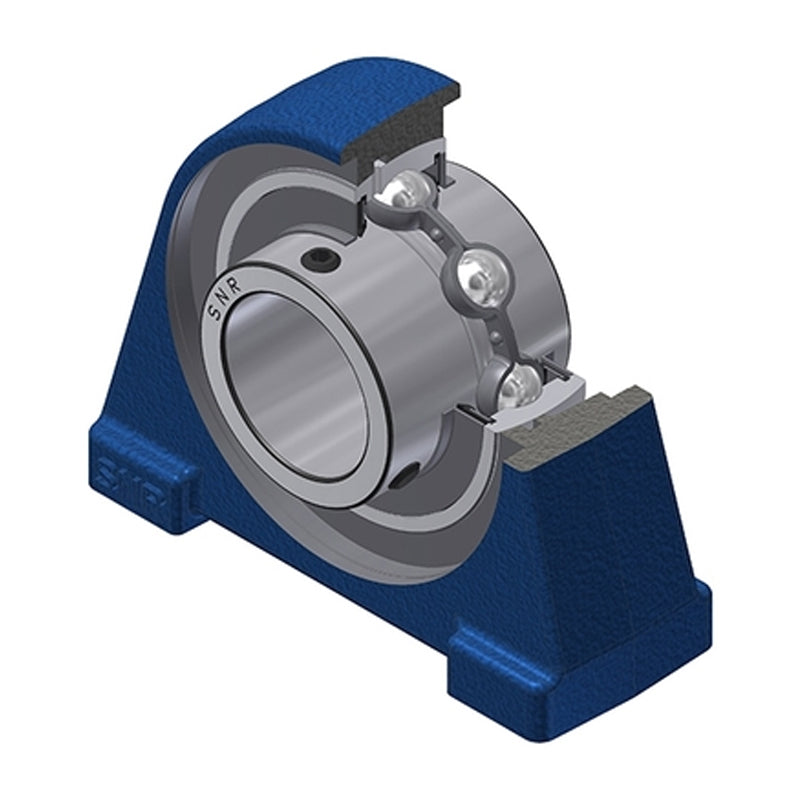

SNR UCPAE202N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 15mm Bore Insert - Allow 2-3 Days
SNR UCPAE202N Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 15mm Bore Insert - Allow 2-3 Days
Regular price
$88.32
ex VAT
Regular price
Sale price
$88.32
ex VAT
In stock
Price Break
3+
$65.80
4+
$63.14
9+
$61.81
19+
$59.81
49+
$58.48
99+
$55.16
499+
$46.52
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
|
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required. Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 15mm
- Style:
- UCPAE
- Bolt Hole Centres:
- 50.8mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 15mm |
| A | 32mm |
| A1 | 19mm |
| B | 31mm |
| E | 10mm |
| H | 33.3mm |
| H1 | 9mm |
| H2 | 64mm |
| J | 50.8mm |
| L | 65mm |
| L1 | 18mm |
| N | M8 |
| S | 12.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| --- | Unit information |
| Recommended tightening torque for set screw | 5.5 Nm |
| Mass | 0.5 kg |
