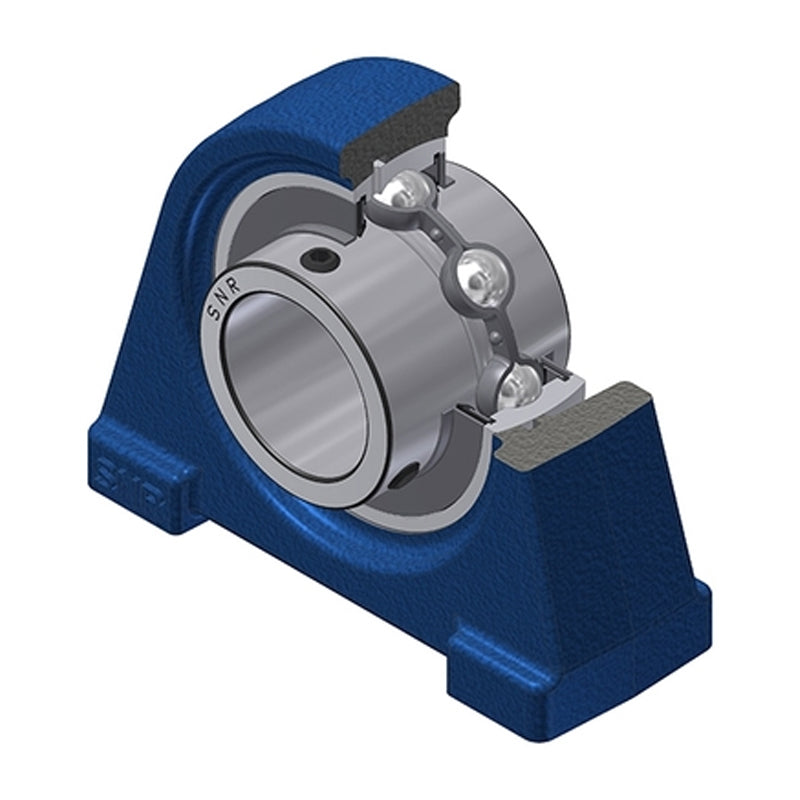

SNR UCPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert

Name: SNR UCPAE204 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert
Brand: SNR
SKU: UCPAE204-SNR
Price: 29.46 USD
Availability: InStock

$29.46 ex VAT

Sale Sold out

In stock

Price Break

3+ $19.74

4+ $18.63

9+ $18.41

19+ $18.18

49+ $17.96

99+ $17.74

499+ $16.63

999+ $16.41

1999+ $16.19

2999+ $15.97

4999+ $15.52

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 20mm
Style:: UCPAE
Bolt Hole Centres:: 50.8mm

Technical

---	Dimensions
Shaft diameter	20mm
A	32mm
A1	19mm
B	31mm
E	10mm
H	33.3mm
H1	9mm
H2	64mm
J	50.8mm
L	65mm
L1	18mm
N	M8
S	12.7mm
G	R1/8″
---	Load rating
Dynamic load C	12.8 kN
Static load C0	6.65 kN
Operating temperature min.	-20°C
Operating temperature max.	100°C
---	Unit information
Recommended tightening torque for set screw	5.5 Nm
Mass	0.47 kg
