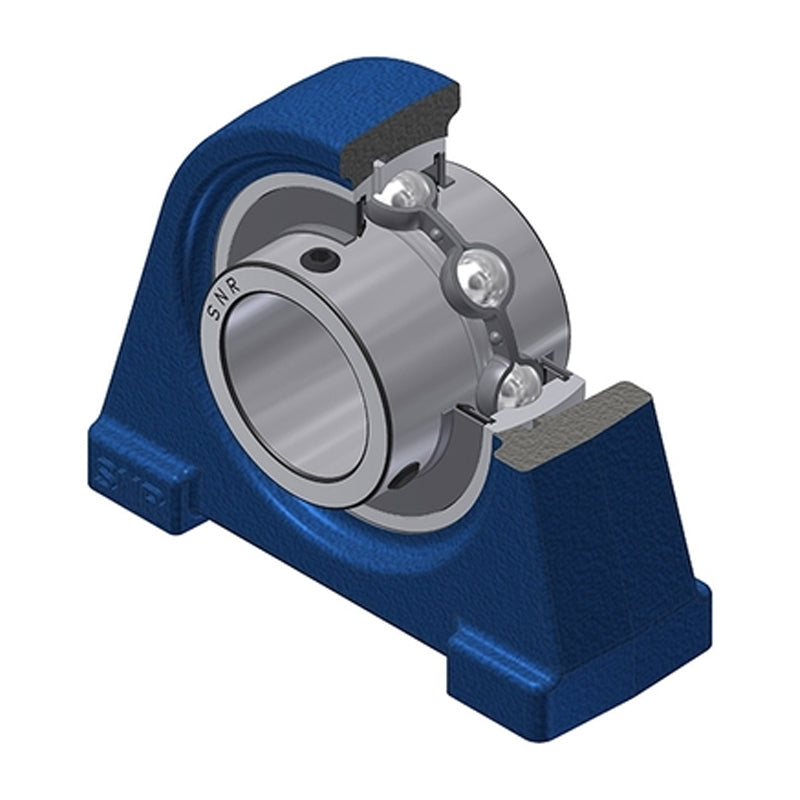

• SNR UCPAE204T04 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert Low Temperature Version - Allow 2-3 Days
1 1

SKU: UCPAE204T04-SNR

SNR UCPAE204T04 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert Low Temperature Version - Allow 2-3 Days

SNR UCPAE204T04 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 20mm Bore Insert Low Temperature Version - Allow 2-3 Days
$73.65 ex VAT
$73.65 ex VAT
Sale Sold out

In stock

Price Break
3+ $54.87
4+ $52.65
9+ $51.54
19+ $49.88
49+ $48.77
99+ $46.00
499+ $38.79
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
20mm
Style:
UCPAE
Bolt Hole Centres:
50.8mm
Technical
--- Dimensions
Shaft diameter 20mm
A 32mm
A1 19mm
B 31mm
E 10mm
H 33.3mm
H1 9mm
H2 64mm
J 50.8mm
L 65mm
L1 18mm
N M8
S 12.7mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
Operating temperature min. -40°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.47 kg
