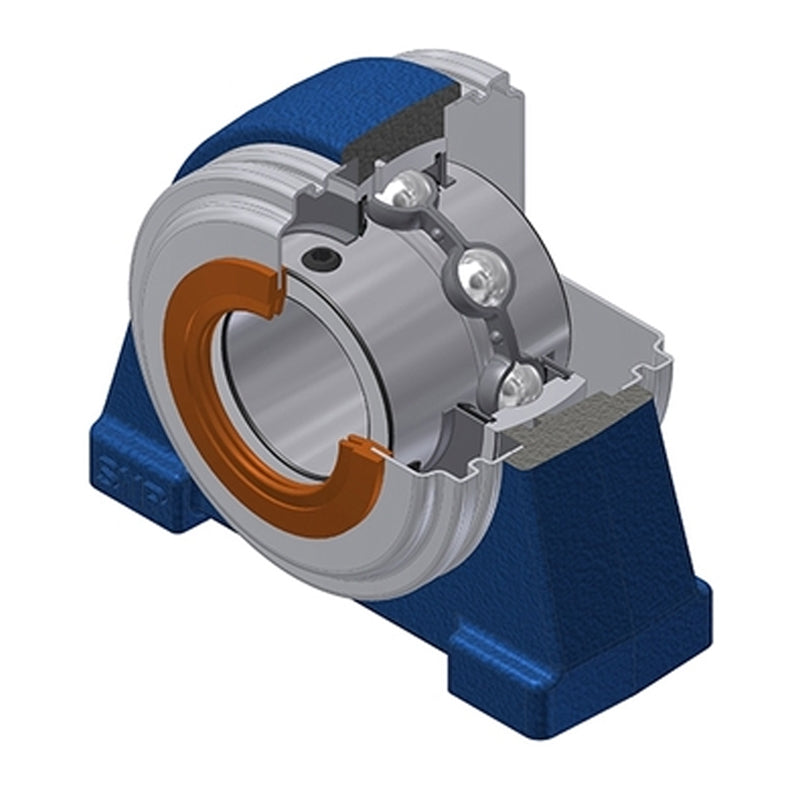

• SNR UCPAE205CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: UCPAE205CO-SNR

SNR UCPAE205CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPAE205CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 25mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$103.00 ex VAT
$103.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.73
4+ $73.63
9+ $72.08
19+ $69.76
49+ $68.21
99+ $64.33
499+ $54.26
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
UCPAE
Bolt Hole Centres:
50.8mm
Technical
--- Dimensions
Shaft diameter 25mm
A 36mm
A1 21mm
B 34mm
E 12.5mm
H 36.5mm
H1 10mm
H2 70mm
J 50.8mm
L 70mm
L1 21mm
N M10
S 14.3mm
Dz 60mm
Z 47.3mm
G R1/8″
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 0.678 kg
