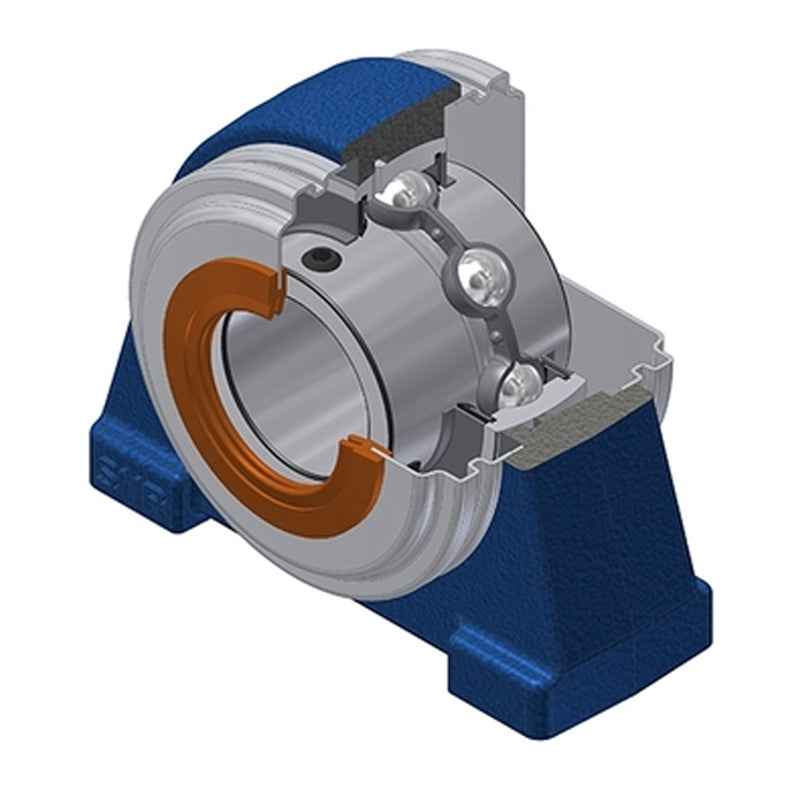

• SNR UCPAE206CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: UCPAE206CO-SNR

SNR UCPAE206CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPAE206CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 30mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$103.00 ex VAT
$103.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.73
4+ $73.63
9+ $72.08
19+ $69.76
49+ $68.21
99+ $64.33
499+ $54.26
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
30mm
Style:
UCPAE
Bolt Hole Centres:
76.2mm
Technical
--- Dimensions
Shaft diameter 30mm
A 38mm
A1 25mm
B 38.1mm
E 12.5mm
H 42.9mm
H1 11mm
H2 82mm
J 76.2mm
L 98mm
L1 22mm
N M10
S 15.9mm
Dz 70mm
Z 52.3mm
G R1/8″
--- Load rating
Dynamic load C 19.5 kN
Static load C0 11.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 5.5 Nm
Mass 1.008 kg
