• SNR UCPAE207-20 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 1-1/4 inch Bore Insert - Allow 2-3 Days
1 1

SKU: UCPAE207-20-SNR

SNR UCPAE207-20 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 1-1/4 inch Bore Insert - Allow 2-3 Days

SNR UCPAE207-20 Threaded Base Small Footprint Imperial Pillow / Plummer Block Housing Supplied with 1-1/4 inch Bore Insert - Allow 2-3 Days
$53.00 ex VAT
$53.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $39.48
4+ $37.89
9+ $37.09
19+ $35.89
49+ $35.09
99+ $33.10
499+ $27.92
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

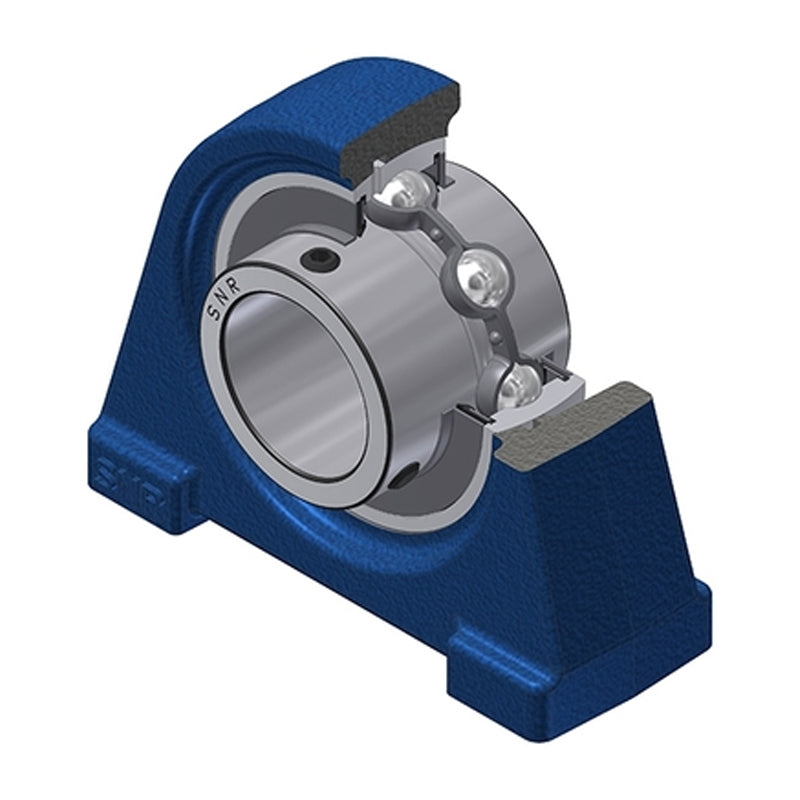

UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
31.75mm = 1.25 (1-1/4) inch
Style:
UCPAE
Bolt Hole Centres:
82.6mm
Technical
--- Dimensions
Shaft diameter 1-1/4 inch
A 45mm
A1 27mm
B 42.9mm
E 12.5mm
H 47.6mm
H1 12mm
H2 93mm
J 82.6mm
L 103mm
L1 22.5mm
N M10
S 17.5mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 8 Nm
Mass 1.43 kg
