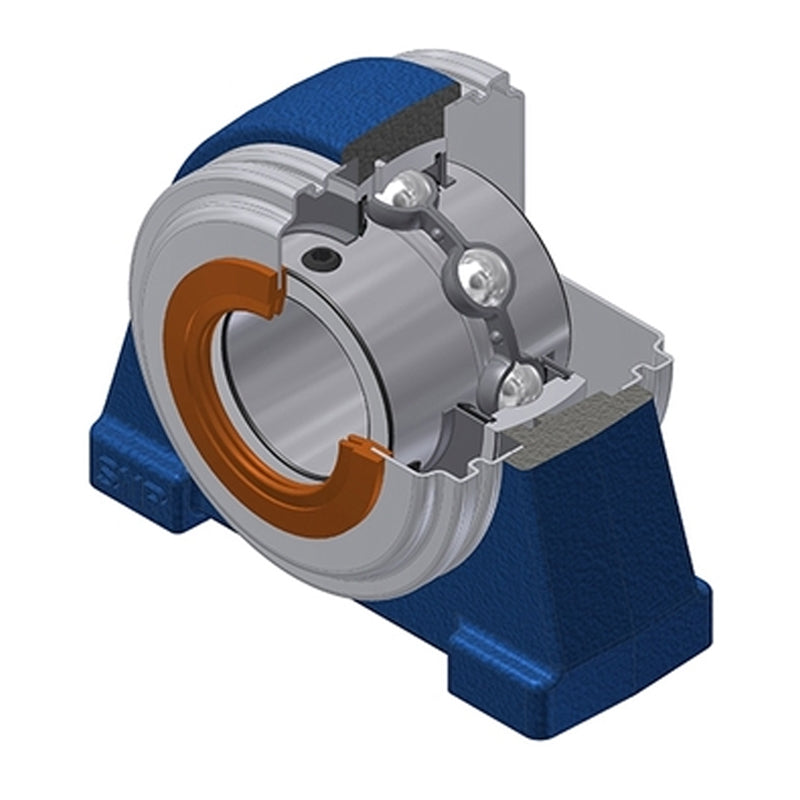

• SNR UCPAE207CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
1 1

SKU: UCPAE207CO-SNR

SNR UCPAE207CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPAE207CO Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
$117.75 ex VAT
$117.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $87.72
4+ $84.18
9+ $82.41
19+ $79.75
49+ $77.98
99+ $73.55
499+ $62.03
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
35mm
Style:
UCPAE
Bolt Hole Centres:
82.6mm
Technical
--- Dimensions
Shaft diameter 35mm
A 45mm
A1 27mm
B 42.9mm
E 12.5mm
H 47.6mm
H1 12mm
H2 93mm
J 82.6mm
L 103mm
L1 22.5mm
N M10
S 17.5mm
Dz 80mm
Z 58.9mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.382 kg
