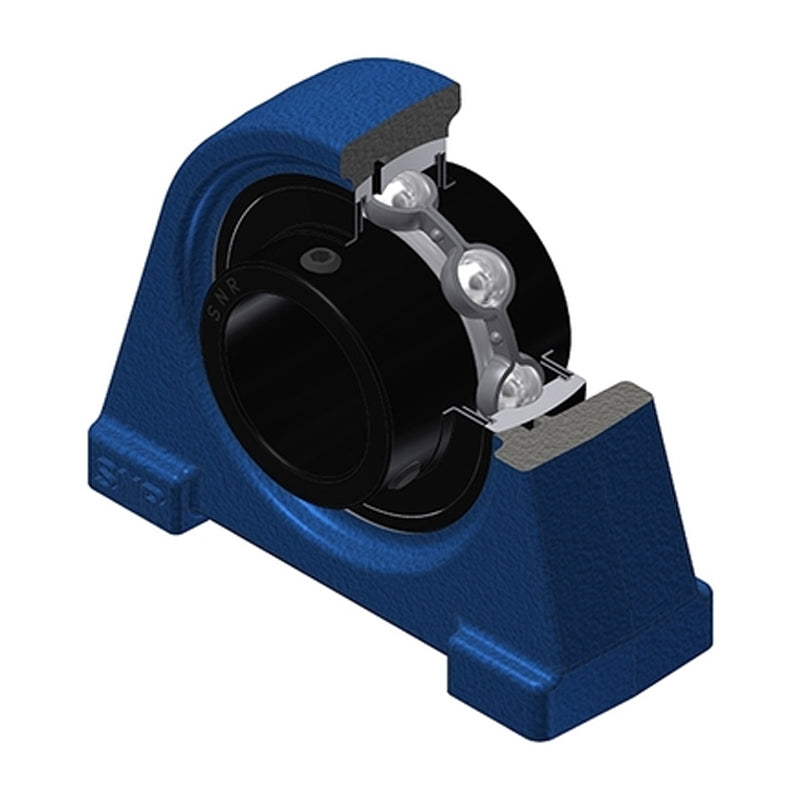

• SNR UCPAE208T20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
1 1

SKU: UCPAE208T20-SNR

SNR UCPAE208T20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCPAE208T20 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
$147.27 ex VAT
$147.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.71
4+ $105.28
9+ $103.06
19+ $99.74
49+ $97.52
99+ $91.98
499+ $77.57
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
40mm
Style:
UCPAE
Bolt Hole Centres:
88.9mm
Technical

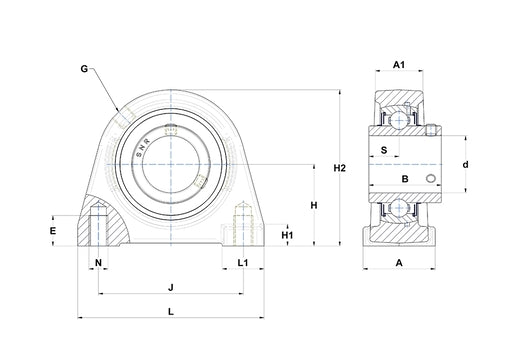

--- Dimensions
Shaft diameter 40mm
A 47mm
A1 30mm
B 49.2mm
E 15mm
H 49.2mm
H1 13mm
H2 99mm
J 88.9mm
L 116mm
L1 27mm
N M12
S 19mm
G R1/8″
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
Operating temperature min. -20°C
Operating temperature max. 200°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.64 kg
