• SNR UCPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPAE209-SNR

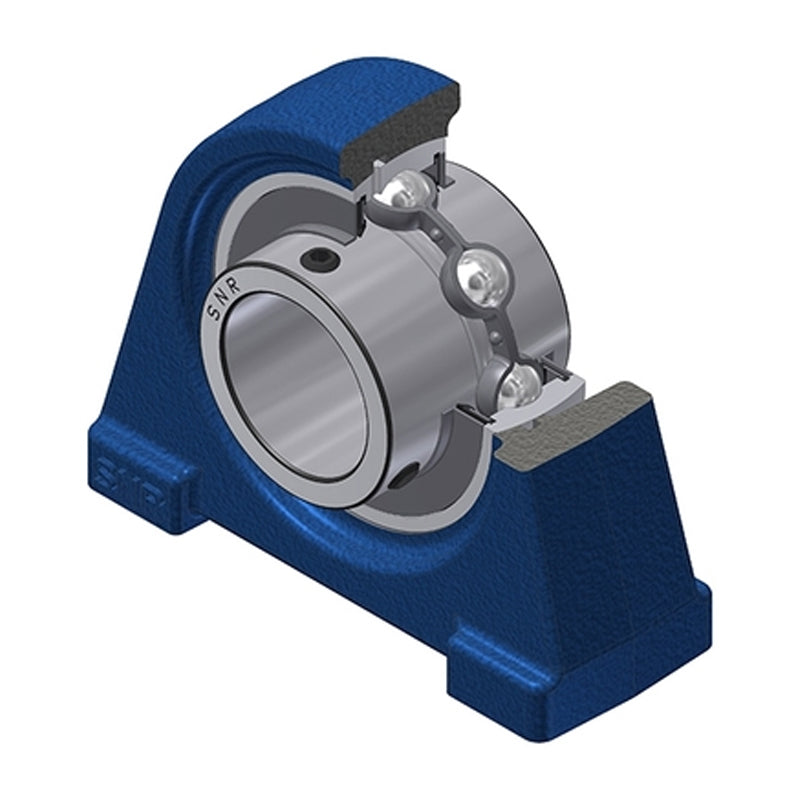

SNR UCPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days

SNR UCPAE209 Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 45mm Bore Insert - Allow 2-3 Days
$56.35 ex VAT
$56.35 ex VAT
Sale Sold out

In stock

Price Break
3+ $37.75
4+ $35.63
9+ $35.20
19+ $34.78
49+ $34.35
99+ $33.93
499+ $31.81
999+ $31.38
1999+ $30.96
2999+ $30.54
4999+ $29.69

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
45mm
Style:
UCPAE
Bolt Hole Centres:
95.3mm
Technical
--- Dimensions
Shaft diameter 45mm
A 48mm
A1 32mm
B 49.2mm
E 15mm
H 53.9mm
H1 14mm
H2 107mm
J 95.3mm
L 120mm
L1 29mm
N M12
S 19mm
G R1/8″
--- Load rating
Dynamic load C 31.85 kN
Static load C0 20.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 11.5 Nm
Mass 1.88 kg
