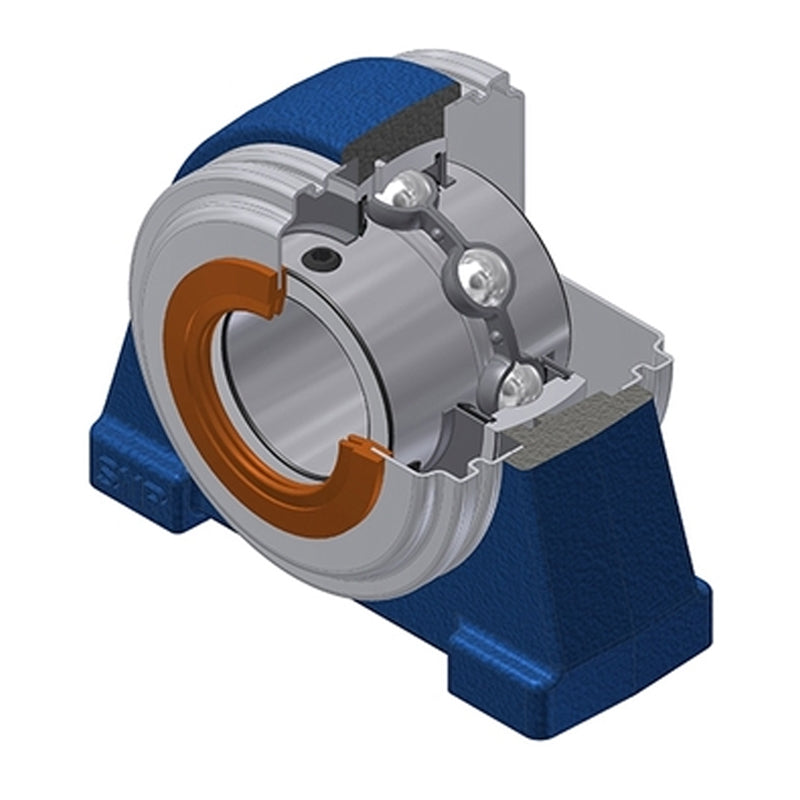

• SNR UCPAE212CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
1 1

SKU: UCPAE212CC-SNR

SNR UCPAE212CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPAE212CC Threaded Base Small Footprint Metric Pillow / Plummer Block Housing Supplied with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
$176.77 ex VAT
$176.77 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.69
4+ $126.37
9+ $123.71
19+ $119.72
49+ $117.06
99+ $110.41
499+ $93.11
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
UCPA/UCPAE Series Cast Iron Small Footprint Pillow Housing Units: Bearing unit supplied with a fully sealed bearing insert fitted in the threaded base housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost-effective bearing/housing assembly, re-lubricatable, replaceable insert, grub screw fixing, small footprint
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UCPAE
Bolt Hole Centres:
118mm
Technical
--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 65.1mm
E 20mm
H 69.9mm
H1 16mm
H2 140mm
J 118mm
L 150mm
L1 32mm
N M16
S 25.4mm
Dz 120mm
Z 91.3mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
Operating temperature min. -20°C
Operating temperature max. 100°C
--- Unit information
Recommended tightening torque for set screw 22 Nm
Mass 4.46 kg
