SKU: UCPE201-08N-SNR

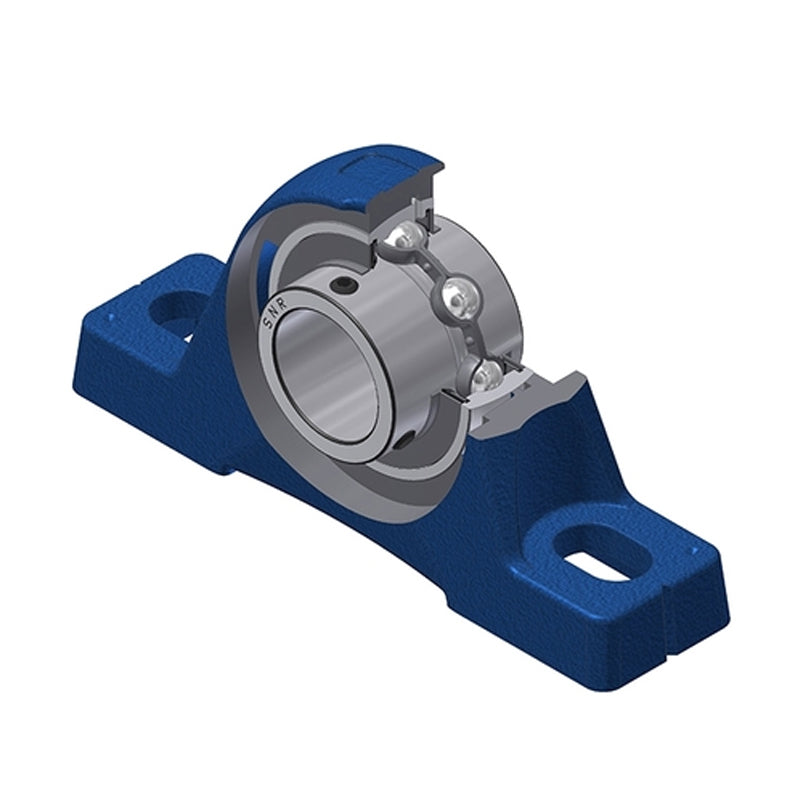

SNR UCPE201-08N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1/2 inch Bore Insert - Allow 2-3 Days
SNR UCPE201-08N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1/2 inch Bore Insert - Allow 2-3 Days
Regular price
$88.36
ex VAT
Regular price
Sale price
$88.36
ex VAT
In stock
Price Break
3+
$65.83
4+
$63.17
9+
$61.84
19+
$59.84
49+
$58.51
99+
$55.19
499+
$46.54
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- UCPE
- Bolt Hole Centres:
- 97mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1/2mm |
| A | 32mm |
| A1 | 19mm |
| B | 31mm |
| H | 33.3mm |
| H1 | 14.5mm |
| H2 | 64mm |
| J | 97mm |
| L | 130mm |
| L1 | 40mm |
| N | 11mm |
| N1 | 19mm |
| S | 12.7mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 12.8 kN |
| Static load C0 | 6.65 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 3.7 Nm |
| Mass | 0.61 kg |
