SKU: UCPE201CO-SNR

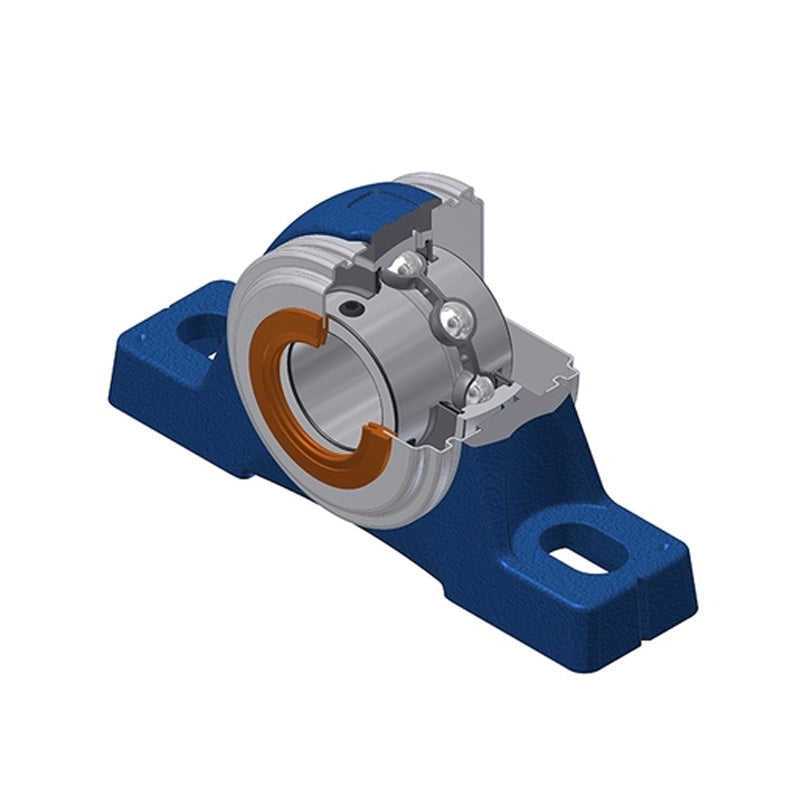

SNR UCPE201CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPE201CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 12mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price $103.00 ex VAT
Regular price Sale price $103.00 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.73
4+ $73.63
9+ $72.08
19+ $69.76
49+ $68.21
99+ $64.33
499+ $54.26
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 12mm
A 32mm
A1 19mm
B 31mm
H 33.3mm
H1 14.5mm
H2 64mm
J 97mm
L 130mm
L1 40mm
N 11mm
N1 19mm
S 12.7mm
Dz 54mm
Z 43.9mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 0.67 kg
