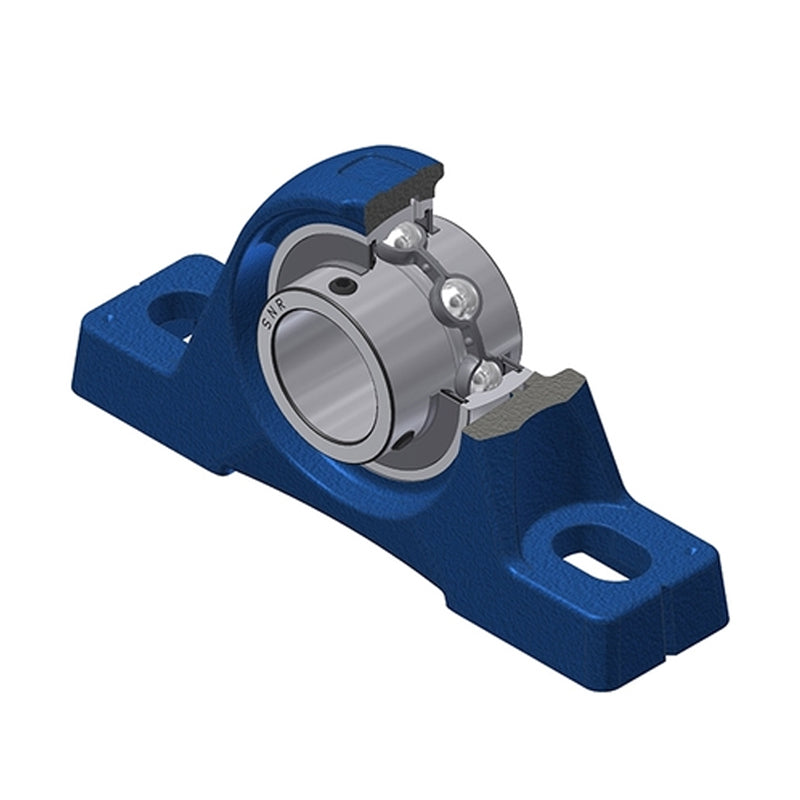

• SNR UCPE202-10 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 5/8 inch Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPE202-10-SNR

SNR UCPE202-10 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 5/8 inch Bore Insert - Allow 2-3 Days

SNR UCPE202-10 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 5/8 inch Bore Insert - Allow 2-3 Days
$26.19 ex VAT
$26.19 ex VAT
Sale Sold out

In stock

Price Break
3+ $17.54
4+ $16.55
9+ $16.36
19+ $16.16
49+ $15.96
99+ $15.77
499+ $14.78
999+ $14.58
1999+ $14.39
2999+ $14.19
4999+ $13.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
15.88mm = 0.625 (5/8) inch
Style:
UCPE
Bolt Hole Centres:
97mm
Technical
--- Dimensions
Shaft diameter 5/8mm
A 32mm
A1 19mm
B 31mm
H 33.3mm
H1 14.5mm
H2 64mm
J 97mm
L 130mm
L1 40mm
N 11mm
N1 19mm
S 12.7mm
G R1/8″
--- Load rating
Dynamic load C 12.8 kN
Static load C0 6.65 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 3.7 Nm
Mass 0.6 kg
