SKU: UCPE207-21N-SNR

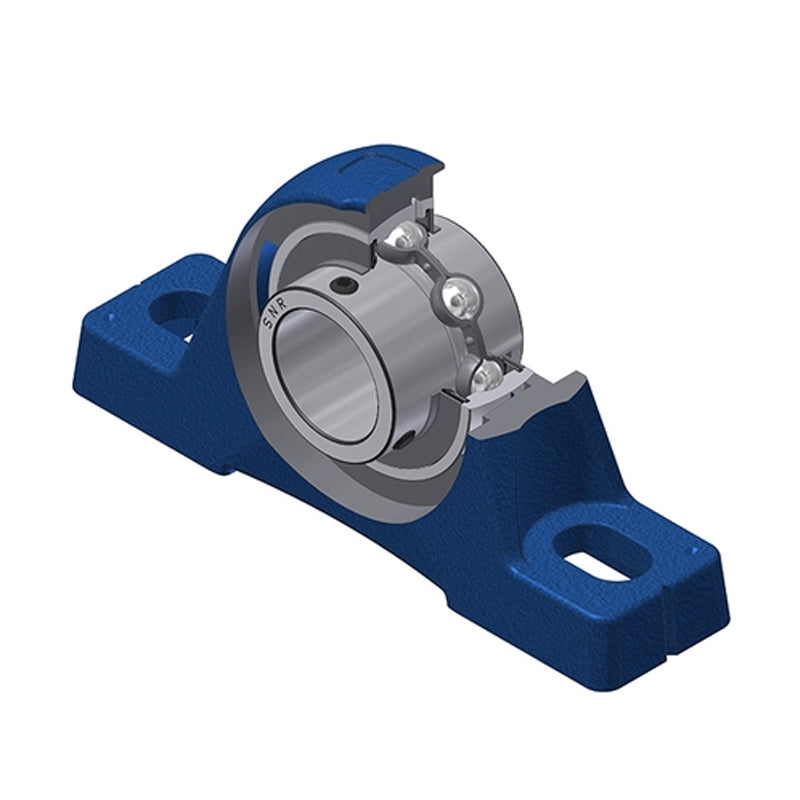

SNR UCPE207-21N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/16 inch Bore Insert - Allow 2-3 Days
SNR UCPE207-21N Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-5/16 inch Bore Insert - Allow 2-3 Days
Regular price
$53.00
ex VAT
Regular price
Sale price
$53.00
ex VAT
In stock
Price Break
3+
$39.48
4+
$37.89
9+
$37.09
19+
$35.89
49+
$35.09
99+
$33.10
499+
$27.92
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Style:
- UCPE
- Bolt Hole Centres:
- 126mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-5/16mm |
| A | 45mm |
| A1 | 27mm |
| B | 42.9mm |
| H | 47.6mm |
| H1 | 19mm |
| H2 | 93mm |
| J | 126mm |
| L | 163mm |
| L1 | 49mm |
| N | 14mm |
| N1 | 21mm |
| S | 17.5mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 25.7 kN |
| Static load C0 | 15.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 8 Nm |
| Mass | 1.51 kg |
