SKU: UCPE207CO-SNR

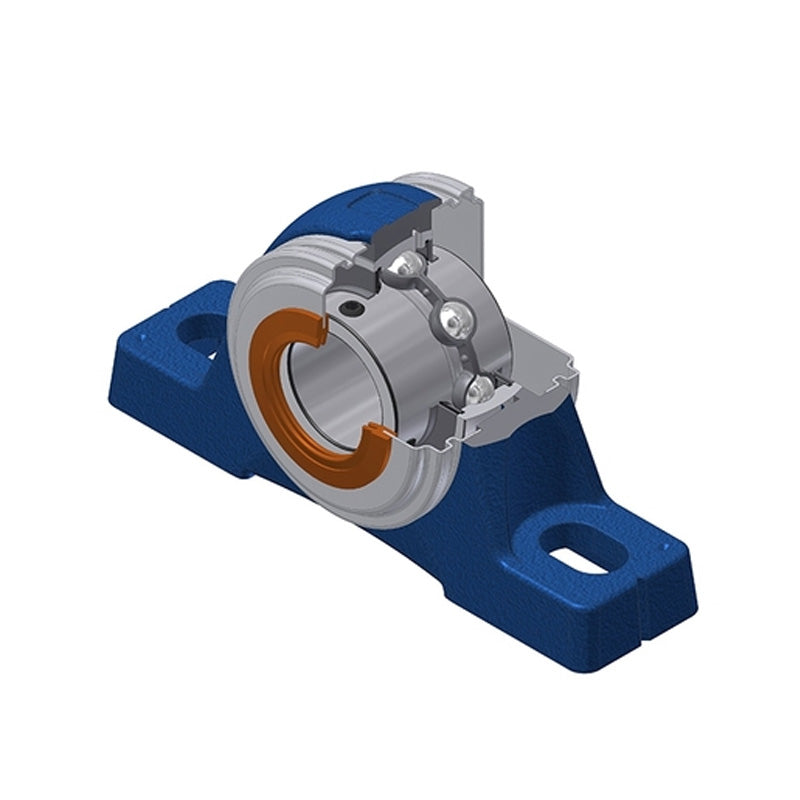

SNR UCPE207CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPE207CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price $103.08 ex VAT
Regular price Sale price $103.08 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.79
4+ $73.69
9+ $72.14
19+ $69.81
49+ $68.26
99+ $64.38
499+ $54.30
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 35mm
A 45mm
A1 27mm
B 42.9mm
H 47.6mm
H1 19mm
H2 93mm
J 126mm
L 163mm
L1 49mm
N 14mm
N1 21mm
S 17.5mm
Dz 80mm
Z 58.9mm
G R1/8″
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.582 kg
