SKU: UCPE208-SNR

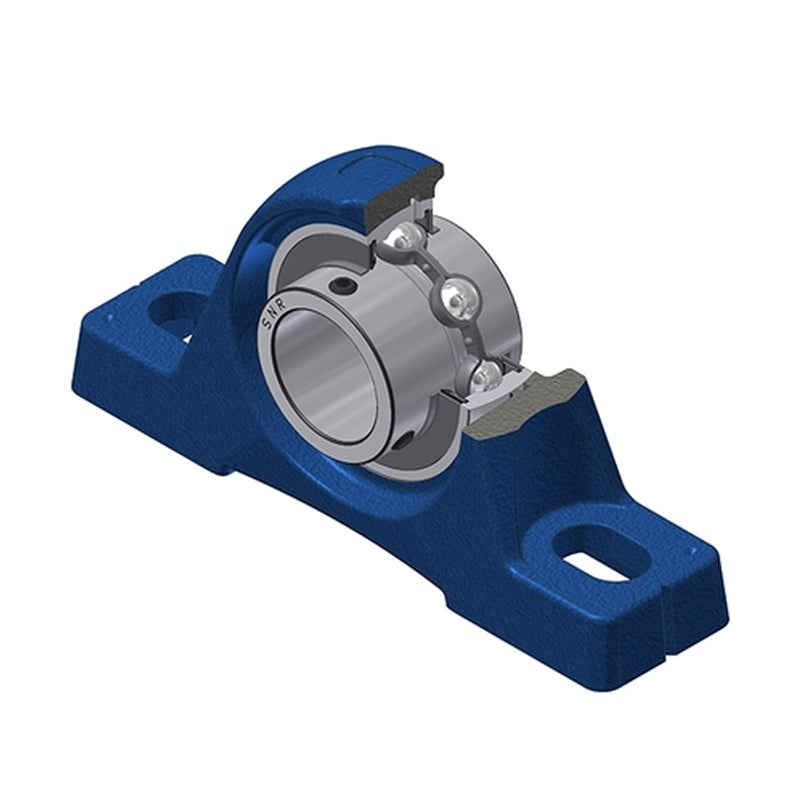

SNR UCPE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert

Name: SNR UCPE208 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert
Brand: SNR
SKU: UCPE208-SNR
Price: 43.26 USD
Availability: InStock

$43.26 ex VAT

Sale Sold out

In stock

Price Break

3+ $28.98

4+ $27.35

9+ $27.02

19+ $26.70

49+ $26.37

99+ $26.05

499+ $24.42

999+ $24.09

1999+ $23.77

2999+ $23.44

4999+ $22.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: SNR - High Quality
Inside Diameter:: 40mm
Style:: UCPE
Bolt Hole Centres:: 138mm

Technical

---	Dimensions
Shaft diameter	40mm
A	48mm
A1	30mm
B	49.2mm
H	49.2mm
H1	19mm
H2	99mm
J	138mm
L	179mm
L1	53mm
N	14mm
N1	26mm
S	19mm
G	R1/8″
---	Load rating
Dynamic load C	29.6 kN
Static load C0	18.2 kN
---	Unit information
Operating temperature min.	-20°C
Operating temperature max.	100°C
Recommended tightening torque for set screw	11.5 Nm
Mass	1.84 kg
