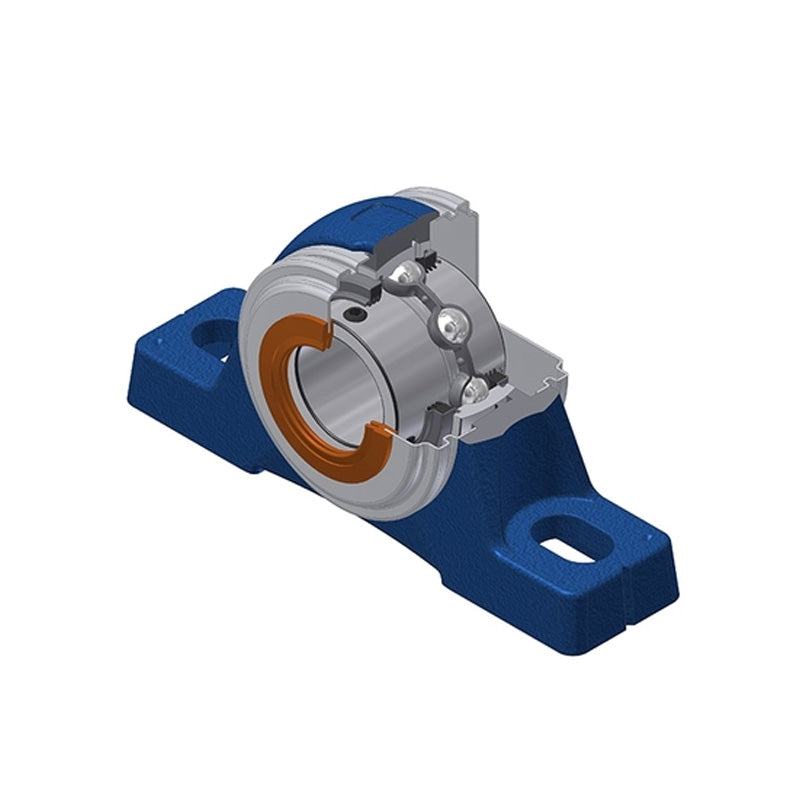

• SNR UCPE210-31NL3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
  • SNR
1 2

SKU: UCPE210-31NL3-SNR

SNR UCPE210-31NL3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days

SNR UCPE210-31NL3 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-15/16 inch Bore Insert with Triple Lip Seal - Allow 2-3 Days
$93.25 ex VAT
$93.25 ex VAT
Sale Sold out

In stock

Price Break
3+ $62.46
4+ $58.95
9+ $58.25
19+ $57.54
49+ $56.84
99+ $56.14
499+ $52.63
999+ $51.93
1999+ $51.23
2999+ $50.53
4999+ $49.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
49.21mm = 1.937 (1-15/16) inch
Style:
UCPE
Bolt Hole Centres:
158mm
Technical
--- Dimensions
Shaft diameter 1-15/16mm
A 54mm
A1 34mm
B 51.6mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 19mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 2.62 kg
