SKU: UCPE210L3-SNR

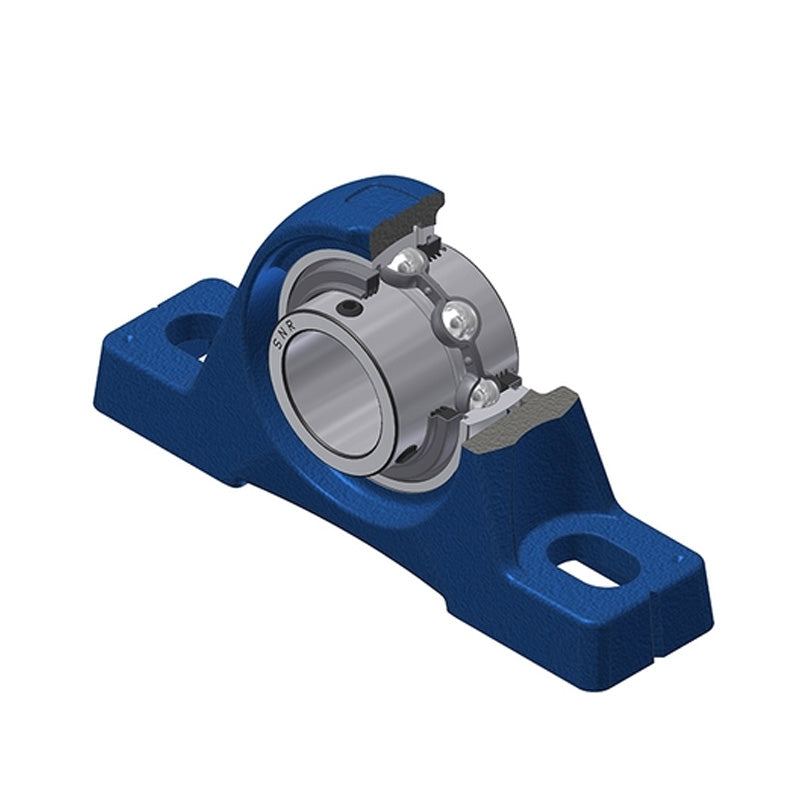

SNR UCPE210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days

SNR UCPE210L3 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price $88.27 ex VAT
Regular price Sale price $88.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.76
4+ $63.10
9+ $61.77
19+ $59.78
49+ $58.45
99+ $55.13
499+ $46.49
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 50mm
A 54mm
A1 34mm
B 51.6mm
H 57.2mm
H1 21.5mm
H2 115mm
J 158mm
L 200mm
L1 61mm
N 18mm
N1 23mm
S 19mm
G R1/8″
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.6 kg
