SKU: UCPE211-34-SNR

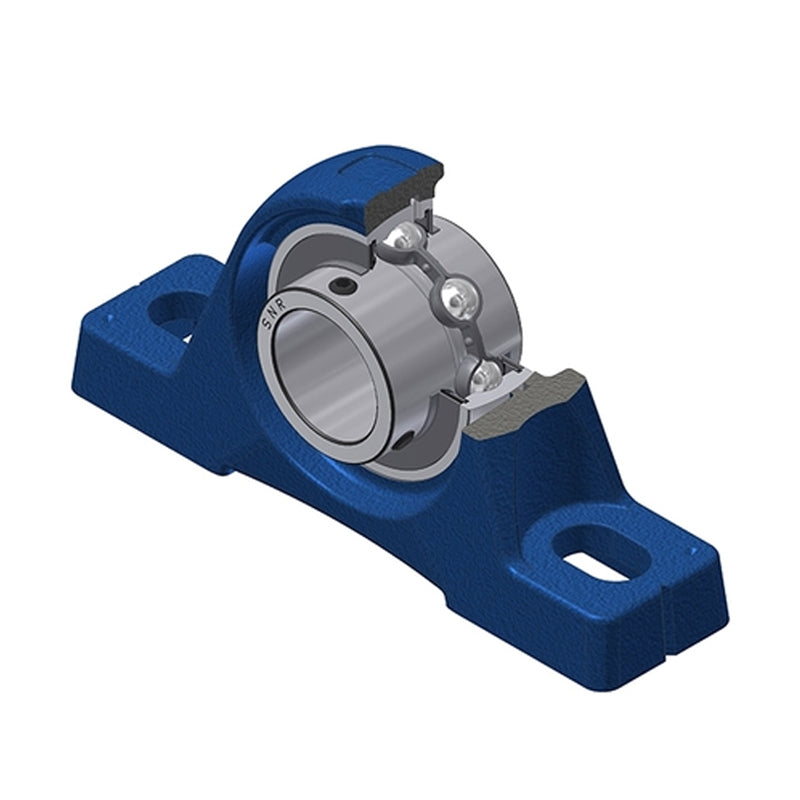

SNR UCPE211-34 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/8 inch Bore Insert - Allow 2-3 Days

SNR UCPE211-34 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/8 inch Bore Insert - Allow 2-3 Days
Regular price $88.34 ex VAT
Regular price Sale price $88.34 ex VAT
Sale Sold out

In stock

Price Break
3+ $65.82
4+ $63.16
9+ $61.83
19+ $59.83
49+ $58.50
99+ $55.18
499+ $46.54
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 2-1/8mm
A 60mm
A1 35mm
B 55.6mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 22.2mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 3.47 kg
