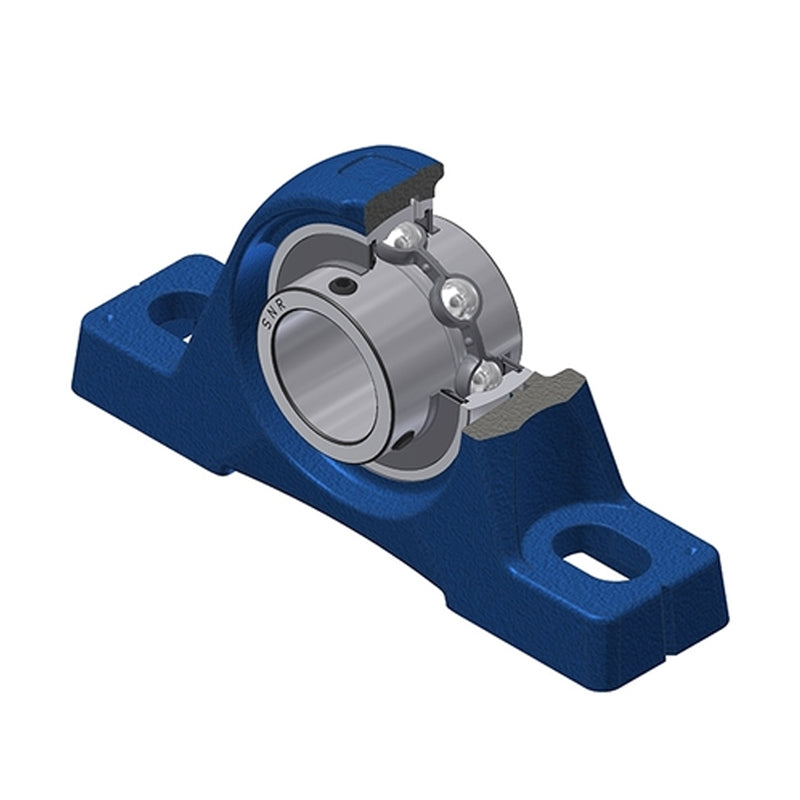

• SNR UCPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPE211-SNR

SNR UCPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days

SNR UCPE211 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert - Allow 2-3 Days
$71.72 ex VAT
$71.72 ex VAT
Sale Sold out

In stock

Price Break
3+ $48.04
4+ $45.34
9+ $44.80
19+ $44.26
49+ $43.72
99+ $43.18
499+ $40.48
999+ $39.94
1999+ $39.40
2999+ $38.86
4999+ $37.78

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
55mm
Style:
UCPE
Bolt Hole Centres:
176mm
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 35mm
B 55.6mm
H 63.5mm
H1 22.5mm
H2 124.5mm
J 176mm
L 222mm
L1 68mm
N 18mm
N1 30mm
S 22.2mm
G R1/8″
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.42 kg
