SKU: UCPE211T20-SNR

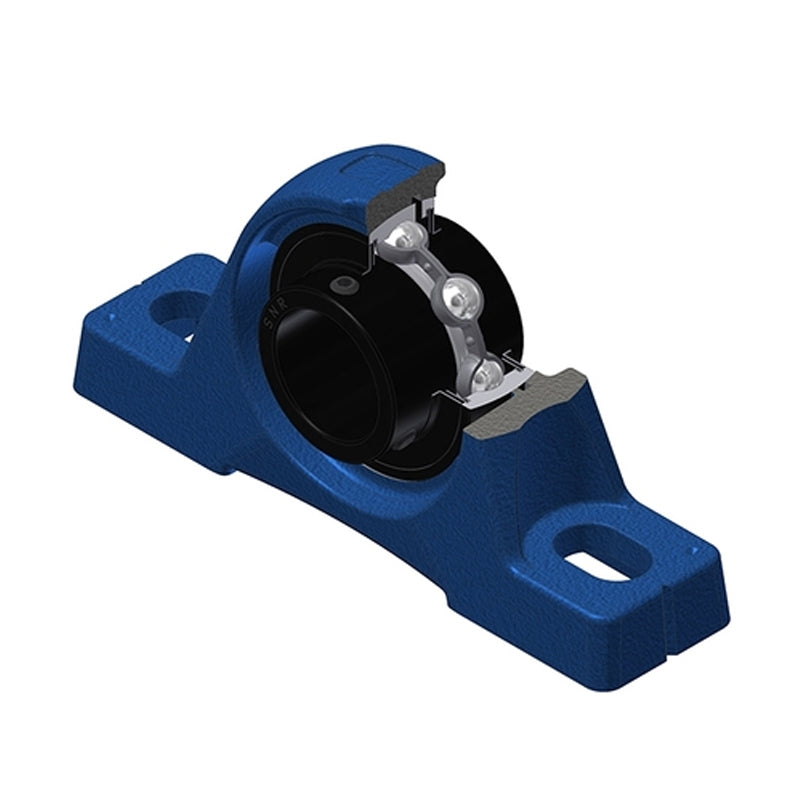

SNR UCPE211T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCPE211T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
$294.47
ex VAT
Regular price
Sale price
$294.47
ex VAT
In stock
Price Break
3+
$219.37
4+
$210.51
9+
$206.08
19+
$199.43
49+
$195.00
99+
$183.92
499+
$155.11
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCPE
- Bolt Hole Centres:
- 176mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| A | 60mm |
| A1 | 35mm |
| B | 55.6mm |
| H | 63.5mm |
| H1 | 22.5mm |
| H2 | 124.5mm |
| J | 176mm |
| L | 222mm |
| L1 | 68mm |
| N | 18mm |
| N1 | 30mm |
| S | 22.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 43.55 kN |
| Static load C0 | 29.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 3.42 kg |
