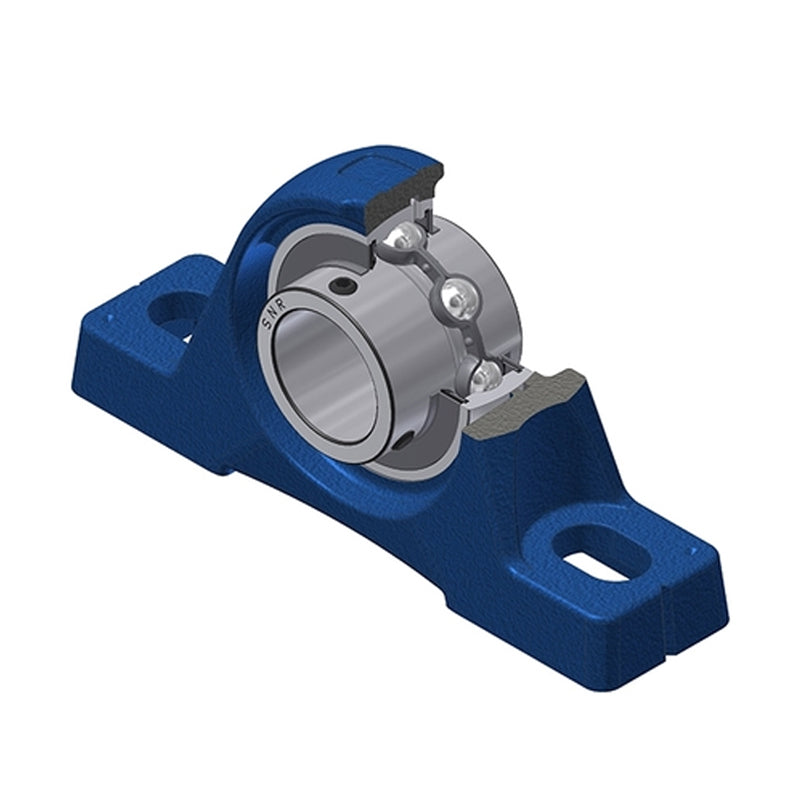

• SNR UCPE212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPE212-36-SNR

SNR UCPE212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days

SNR UCPE212-36 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 2-1/4 inch Bore Insert - Allow 2-3 Days
$82.18 ex VAT
$82.18 ex VAT
Sale Sold out

In stock

Price Break
3+ $55.05
4+ $51.96
9+ $51.34
19+ $50.72
49+ $50.10
99+ $49.48
499+ $46.39
999+ $45.77
1999+ $45.15
2999+ $44.53
4999+ $43.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
57.15mm = 2.25 (2-1/4) inch
Style:
UCPE
Bolt Hole Centres:
190mm
Technical
--- Dimensions
Shaft diameter 2-1/4mm
A 60mm
A1 42mm
B 65.1mm
H 69.9mm
H1 25mm
H2 140mm
J 190mm
L 240mm
L1 71mm
N 18mm
N1 28mm
S 25.4mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 16.8 Nm
Mass 4.97 kg
