SKU: UCPE212CC-SNR

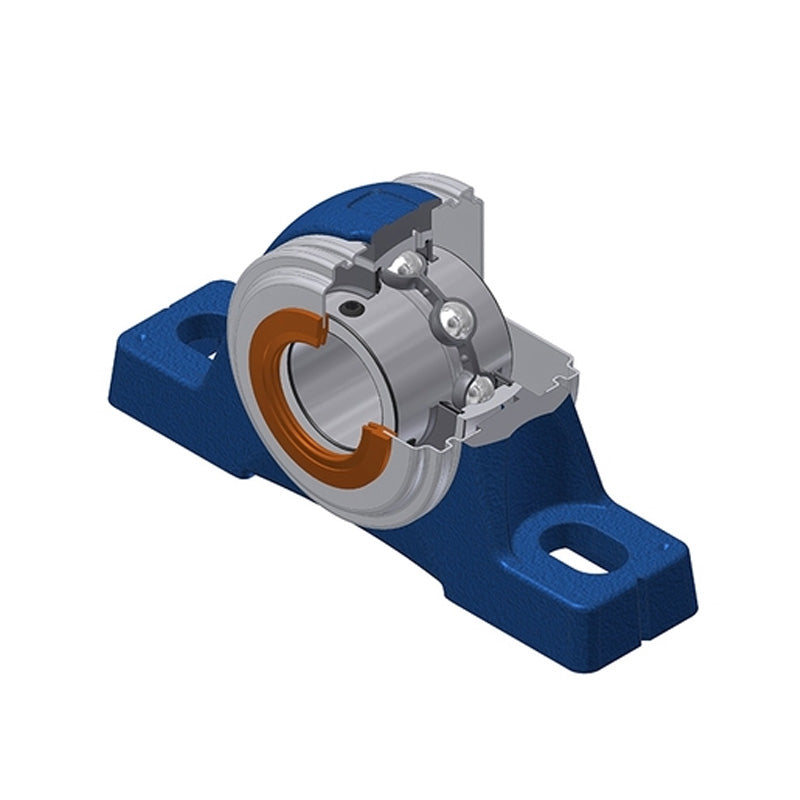

SNR UCPE212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPE212CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $176.64 ex VAT
Regular price Sale price $176.64 ex VAT
Sale Sold out

In stock

Price Break
3+ $131.59
4+ $126.27
9+ $123.62
19+ $119.63
49+ $116.97
99+ $110.32
499+ $93.04
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 60mm
A 60mm
A1 42mm
B 65.1mm
H 69.9mm
H1 25mm
H2 140mm
J 190mm
L 240mm
L1 71mm
N 18mm
N1 28mm
S 25.4mm
Dz 120mm
Z 92.3mm
G R1/8″
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 5.06 kg
