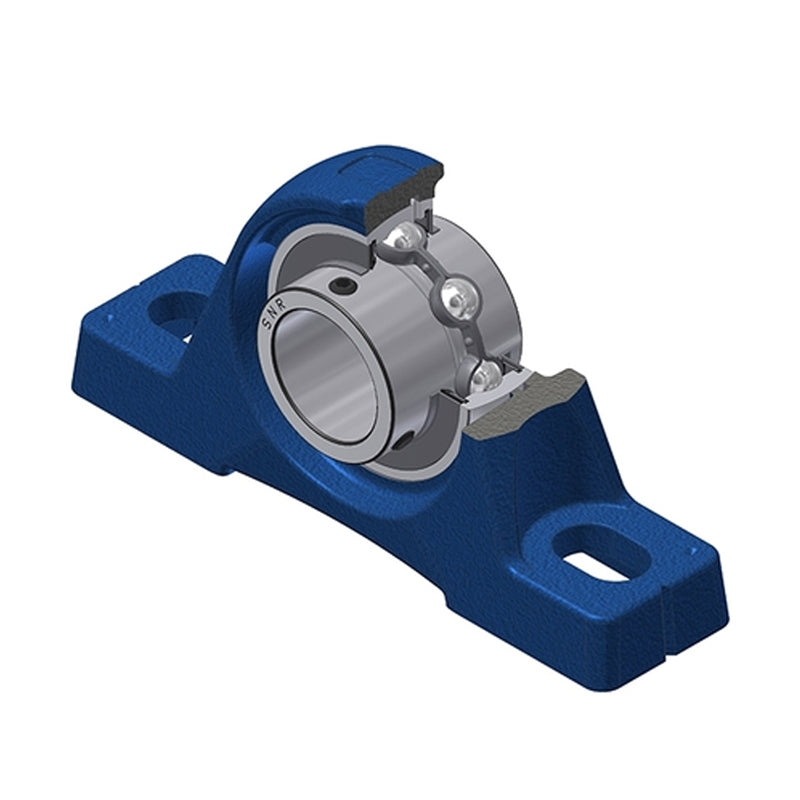

• SNR UCPE213 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPE213-SNR

SNR UCPE213 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days

SNR UCPE213 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
$106.73 ex VAT
$106.73 ex VAT
Sale Sold out

In stock

Price Break
3+ $71.49
4+ $67.47
9+ $66.67
19+ $65.87
49+ $65.06
99+ $64.26
499+ $60.24
999+ $59.44
1999+ $58.64
2999+ $57.83
4999+ $56.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
65mm
Style:
UCPE
Bolt Hole Centres:
203mm
Technical
--- Dimensions
Shaft diameter 65mm
A 65mm
A1 44mm
B 65.1mm
H 79.4mm
H1 27.5mm
H2 156mm
J 203mm
L 260mm
L1 77mm
N 22mm
N1 28mm
S 25.4mm
G R1/8″
--- Load rating
Dynamic load C 57.2 kN
Static load C0 40 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 6.36 kg
