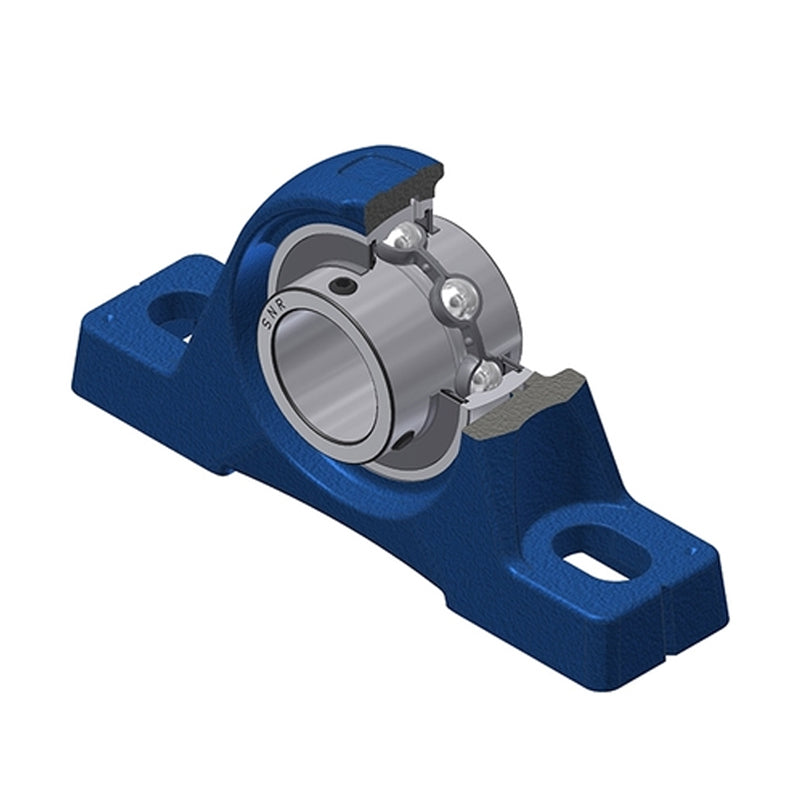

• SNR UCPE214 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPE214-SNR

SNR UCPE214 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days

SNR UCPE214 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 70mm Bore Insert - Allow 2-3 Days
$138.76 ex VAT
$138.76 ex VAT
Sale Sold out

In stock

Price Break
3+ $92.94
4+ $87.72
9+ $86.67
19+ $85.63
49+ $84.59
99+ $83.54
499+ $78.32
999+ $77.28
1999+ $76.23
2999+ $75.19
4999+ $73.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
70mm
Style:
UCPE
Bolt Hole Centres:
203mm
Technical
--- Dimensions
Shaft diameter 70mm
A 65mm
A1 44mm
B 74.6mm
H 79.4mm
H1 27.5mm
H2 156mm
J 203mm
L 260mm
L1 77mm
N 22mm
N1 28mm
S 30.2mm
G R1/8″
--- Load rating
Dynamic load C 62 kN
Static load C0 45 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 6.15 kg
