• SNR UCPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPE216-SNR

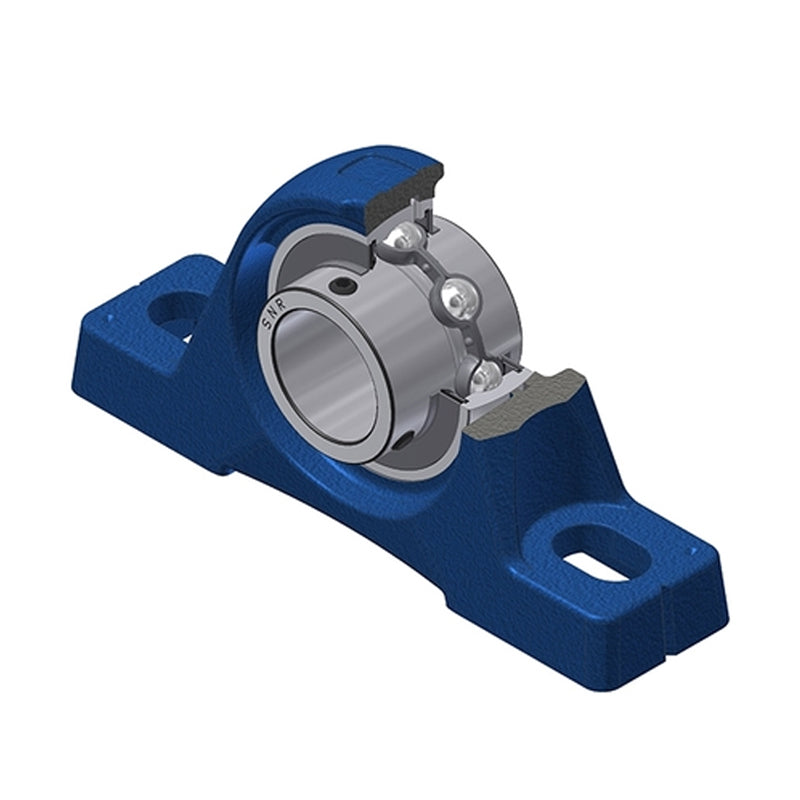

SNR UCPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days

SNR UCPE216 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 80mm Bore Insert - Allow 2-3 Days
$179.31 ex VAT
$179.31 ex VAT
Sale Sold out

In stock

Price Break
3+ $120.10
4+ $113.35
9+ $112.01
19+ $110.66
49+ $109.31
99+ $107.96
499+ $101.21
999+ $99.86
1999+ $98.51
2999+ $97.16
4999+ $94.46

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
80mm
Style:
UCPE
Bolt Hole Centres:
232mm
Technical
--- Dimensions
Shaft diameter 80mm
A 78mm
A1 55mm
B 82.6mm
H 89mm
H1 30mm
H2 175mm
J 232mm
L 290mm
L1 90mm
N 26mm
N1 34mm
S 33.3mm
G R1/8″
--- Load rating
Dynamic load C 72.5 kN
Static load C0 54.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 9.09 kg
