• SNR UCPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPE218-SNR

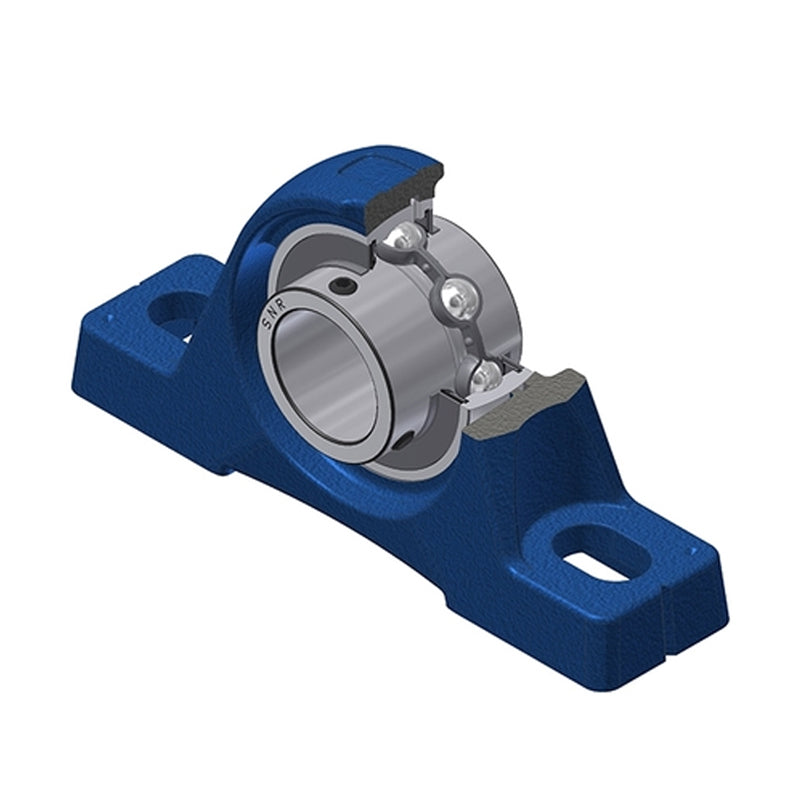

SNR UCPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days

SNR UCPE218 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 90mm Bore Insert - Allow 2-3 Days
$286.81 ex VAT
$286.81 ex VAT
Sale Sold out

In stock

Price Break
3+ $192.12
4+ $181.32
9+ $179.17
19+ $177.01
49+ $174.85
99+ $172.69
499+ $161.90
999+ $159.74
1999+ $157.58
2999+ $155.42
4999+ $151.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
90mm
Style:
UCPE
Bolt Hole Centres:
268mm
Technical
--- Dimensions
Shaft diameter 90mm
A 85mm
A1 55mm
B 96mm
H 101.6mm
H1 35mm
H2 200mm
J 268mm
L 330mm
L1 99mm
N 27mm
N1 35mm
S 39.7mm
G R1/8″
--- Load rating
Dynamic load C 96 kN
Static load C0 71.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 13.55 kg
