SKU: UCPEX09-28-SNR

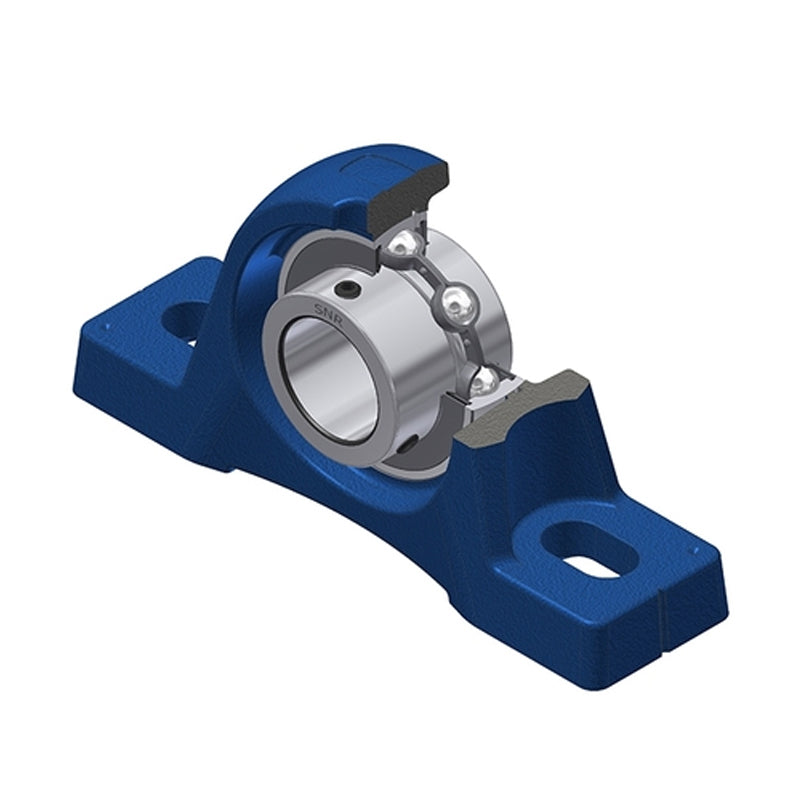

SNR UCPEX09-28 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
SNR UCPEX09-28 Imperial Cast Iron Two Bolt Pillow / Plummer Block Housing with 1-3/4 inch Bore Insert - Allow 2-3 Days
Regular price
$88.29
ex VAT
Regular price
Sale price
$88.29
ex VAT
In stock
Price Break
3+
$65.78
4+
$63.12
9+
$61.79
19+
$59.80
49+
$58.47
99+
$55.15
499+
$46.51
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- UCPEX
- Bolt Hole Centres:
- 159mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 1-3/4mm |
| A | 60mm |
| A1 | 39.8mm |
| B | 51.6mm |
| H | 58.7mm |
| H1 | 22.5mm |
| H2 | 116.7mm |
| J | 159mm |
| L | 222.2mm |
| L1 | 65mm |
| N | 18mm |
| N1 | 32mm |
| S | 19mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 16.8 Nm |
| Mass | 3.25 kg |
