SKU: UCPEX12-SNR

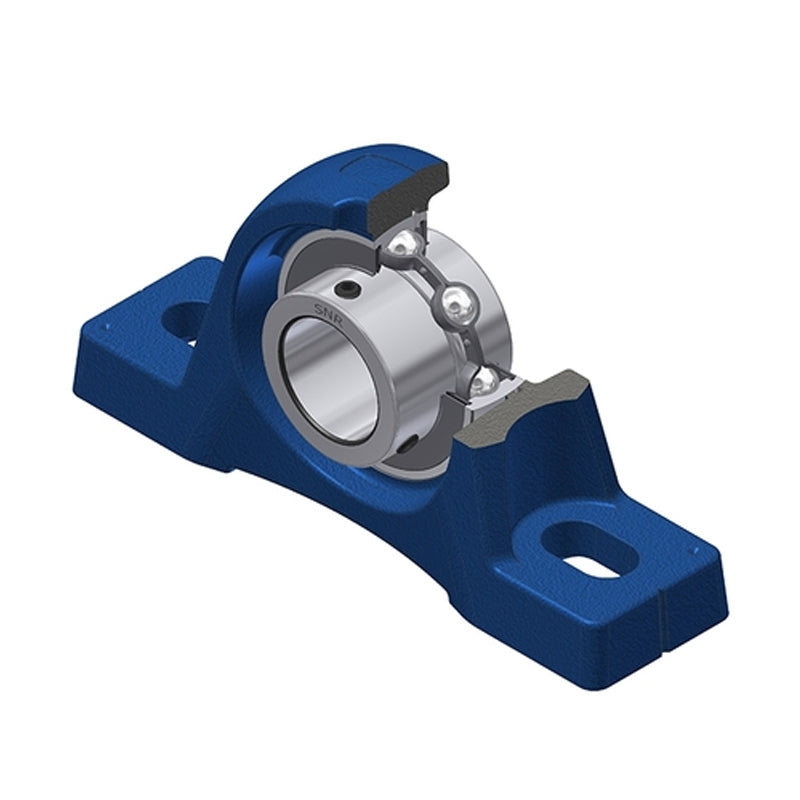

SNR UCPEX12 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
SNR UCPEX12 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price
$147.23
ex VAT
Regular price
Sale price
$147.23
ex VAT
In stock
Price Break
3+
$109.68
4+
$105.25
9+
$103.03
19+
$99.71
49+
$97.50
99+
$91.96
499+
$77.55
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPE/UCPEX Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCPEX
- Bolt Hole Centres:
- 207mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 60mm |
| A | 72mm |
| A1 | 47.4mm |
| B | 74.6mm |
| H | 76.2mm |
| H1 | 27mm |
| H2 | 153mm |
| J | 207mm |
| L | 266mm |
| L1 | 76mm |
| N | 22mm |
| N1 | 39.5mm |
| S | 30.2mm |
| G | R1/8″ |
| --- | Load rating |
| Dynamic load C | 62 kN |
| Static load C0 | 45 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 6.77 kg |
