SKU: UCPEX13-SNR

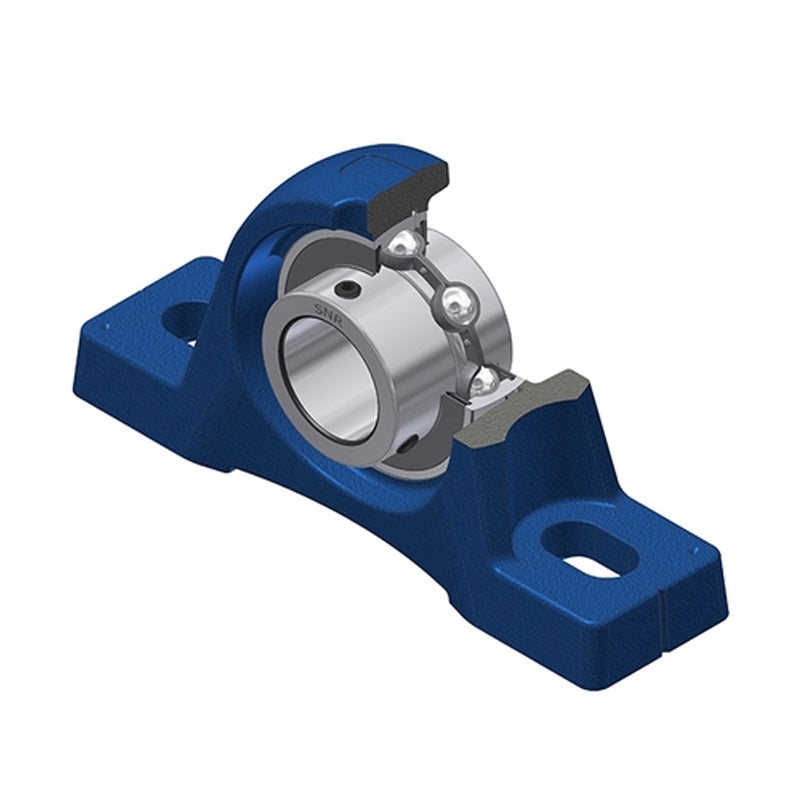

SNR UCPEX13 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days

SNR UCPEX13 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price $206.13 ex VAT
Regular price Sale price $206.13 ex VAT
Sale Sold out

In stock

Price Break
3+ $153.56
4+ $147.35
9+ $144.25
19+ $139.60
49+ $136.50
99+ $128.74
499+ $108.58
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 65mm
A 88.9mm
A1 67mm
B 77.8mm
H 88.9mm
H1 28.6mm
H2 177.8mm
J 230.8mm
L 330.2mm
L1 92mm
N 26mm
N1 50.7mm
S 33.3mm
G R1/8″
--- Load rating
Dynamic load C 66 kN
Static load C0 49.5 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 33 Nm
Mass 11.23 kg
