SKU: UCPG207CC-SNR

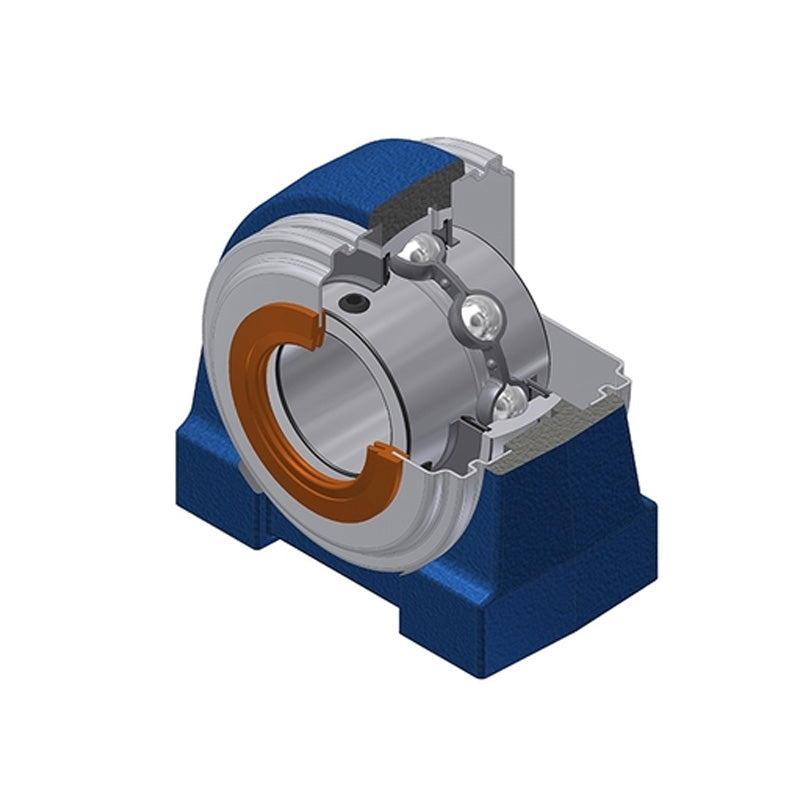

SNR UCPG207CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days

SNR UCPG207CC Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 35mm Bore Insert with Narrow Steel Plate Cover - Closed Version - Allow 2-3 Days
Regular price $103.07 ex VAT
Regular price Sale price $103.07 ex VAT
Sale Sold out

In stock

Price Break
3+ $76.78
4+ $73.68
9+ $72.13
19+ $69.80
49+ $68.25
99+ $64.37
499+ $54.29
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical

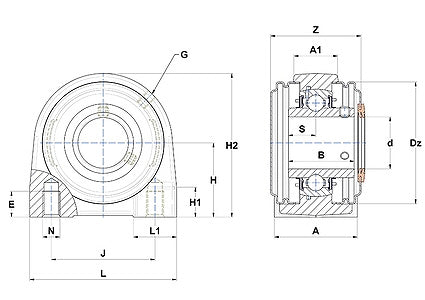

--- Dimensions
Shaft diameter 35mm
A 48mm
A1 27mm
B 42.9mm
E 22mm
H 47.6mm
H1 20mm
H2 93mm
J 68mm
L 100mm
L1 35mm
N M12
S 17.5mm
Dz 80mm
Z 59.9mm
G M6x1
--- Load rating
Dynamic load C 25.7 kN
Static load C0 15.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.588 kg
