SKU: UCPG208T20-SNR

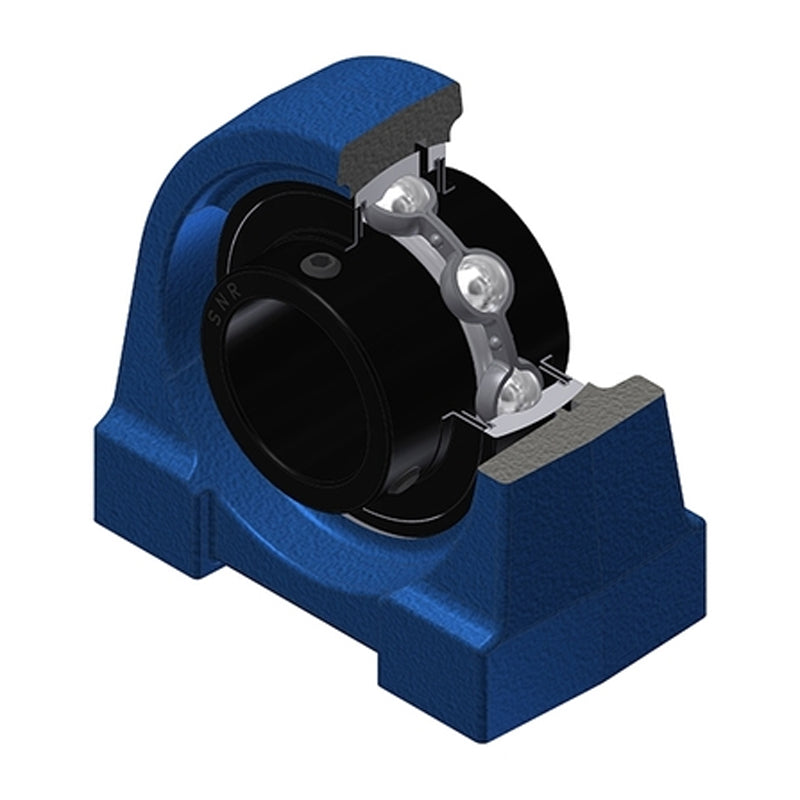

SNR UCPG208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days

SNR UCPG208T20 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 40mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price $147.27 ex VAT
Regular price Sale price $147.27 ex VAT
Sale Sold out

In stock

Price Break
3+ $109.71
4+ $105.28
9+ $103.06
19+ $99.74
49+ $97.52
99+ $91.98
499+ $77.57
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 40mm
A 54mm
A1 30mm
B 49.2mm
E 22mm
H 49.2mm
H1 20mm
H2 98mm
J 78mm
L 110mm
L1 35mm
N M12
S 19mm
G M6x1
--- Load rating
Dynamic load C 29.6 kN
Static load C0 18.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 200°C
Recommended tightening torque for set screw 11.5 Nm
Mass 1.84 kg
