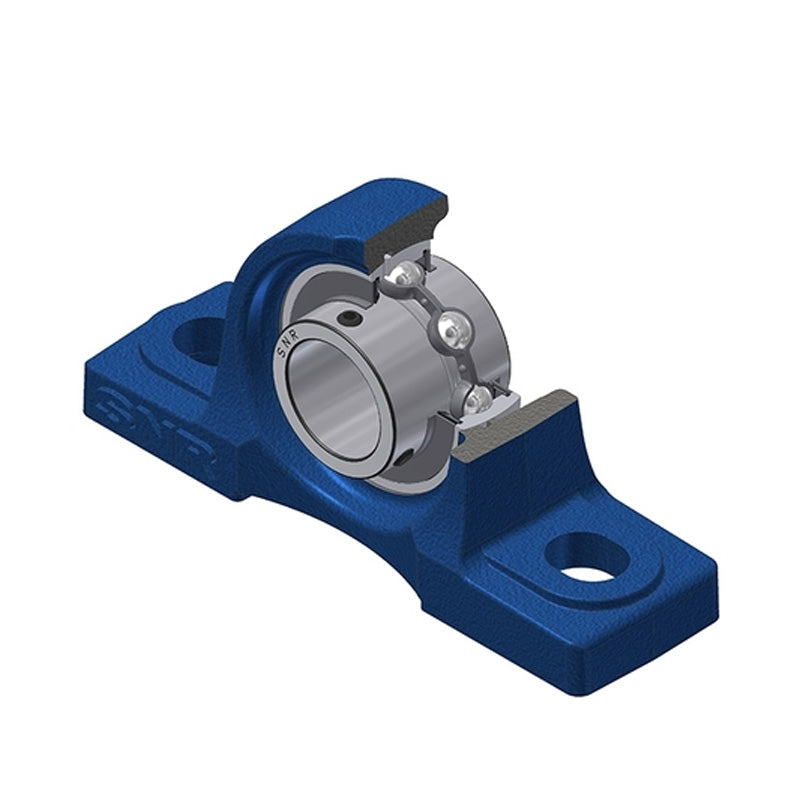

• SNR UCPG210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPG210N-SNR

SNR UCPG210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days

SNR UCPG210N Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 50mm Bore Insert - Allow 2-3 Days
$77.48 ex VAT
$77.48 ex VAT
Sale Sold out

In stock

Price Break
3+ $51.90
4+ $48.98
9+ $48.40
19+ $47.82
49+ $47.23
99+ $46.65
499+ $43.74
999+ $43.15
1999+ $42.57
2999+ $41.99
4999+ $40.82

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
50mm
Style:
UCPG
Bolt Hole Centres:
95mm
Technical

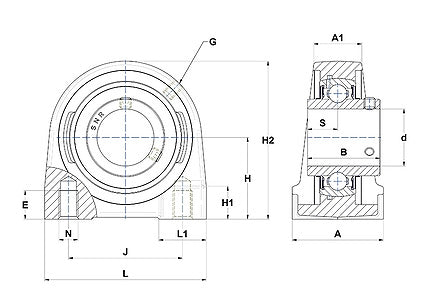

--- Dimensions
Shaft diameter 50mm
A 60mm
A1 35mm
B 51.6mm
E 25mm
H 57.2mm
H1 21mm
H2 114mm
J 95mm
L 135mm
L1 40mm
N M16
S 19mm
G M6x1
--- Load rating
Dynamic load C 35.1 kN
Static load C0 23.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 2.7 kg
