SKU: UCPG211CO-SNR

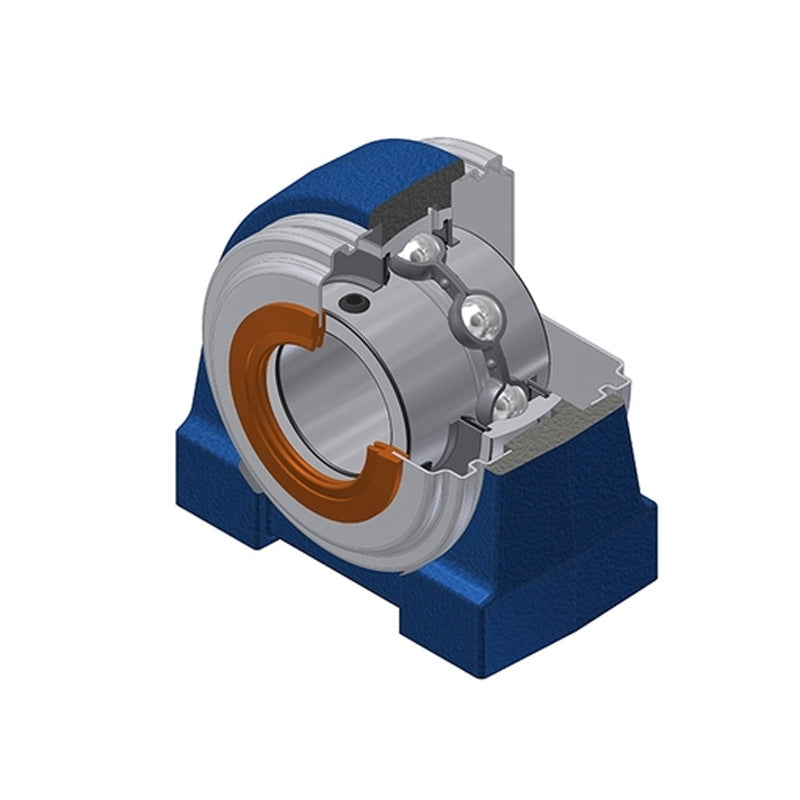

SNR UCPG211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days

SNR UCPG211CO Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 55mm Bore Insert with Narrow Steel Plate Cover - Open Version - Allow 2-3 Days
Regular price $132.57 ex VAT
Regular price Sale price $132.57 ex VAT
Sale Sold out

In stock

Price Break
3+ $98.76
4+ $94.77
9+ $92.78
19+ $89.78
49+ $87.79
99+ $82.80
499+ $69.83
999+ $0.00
1999+ $0.00
2999+ $0.00
4999+ $0.00
Quantity

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Technical
--- Dimensions
Shaft diameter 55mm
A 60mm
A1 34mm
B 55.6mm
E 25mm
H 63.5mm
H1 25mm
H2 126mm
J 100mm
L 140mm
L1 40mm
N M16
S 22.2mm
Dz 110mm
Z 52.6mm
G M6x1
--- Load rating
Dynamic load C 43.55 kN
Static load C0 29.2 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 3.441 kg
