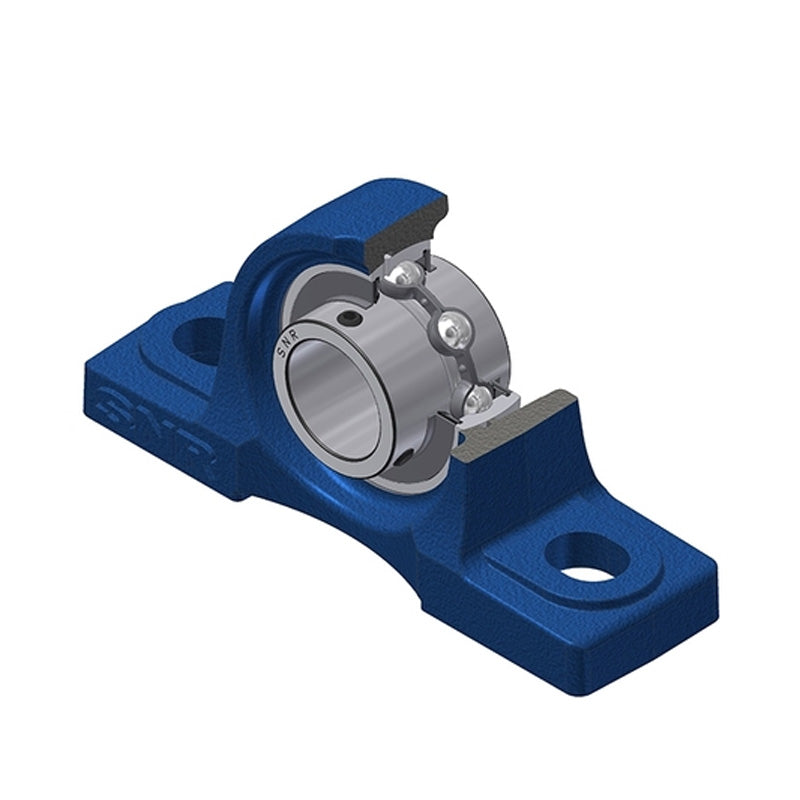

• SNR UCPG212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPG212-SNR

SNR UCPG212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days

SNR UCPG212 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
$90.43 ex VAT
$90.43 ex VAT
Sale Sold out

In stock

Price Break
3+ $60.58
4+ $57.17
9+ $56.49
19+ $55.81
49+ $55.13
99+ $54.45
499+ $51.05
999+ $50.37
1999+ $49.69
2999+ $49.01
4999+ $47.65

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
60mm
Style:
UCPG
Bolt Hole Centres:
105mm
Technical
--- Dimensions
Shaft diameter 60mm
A 70mm
A1 40mm
B 65.1mm
E 25mm
H 69.8mm
H1 25mm
H2 138mm
J 105mm
L 150mm
L1 50mm
N M16
S 25.4mm
G M6x1
--- Load rating
Dynamic load C 52.5 kN
Static load C0 32.8 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 22 Nm
Mass 4.63 kg
