SKU: UCPG212D1-NTN

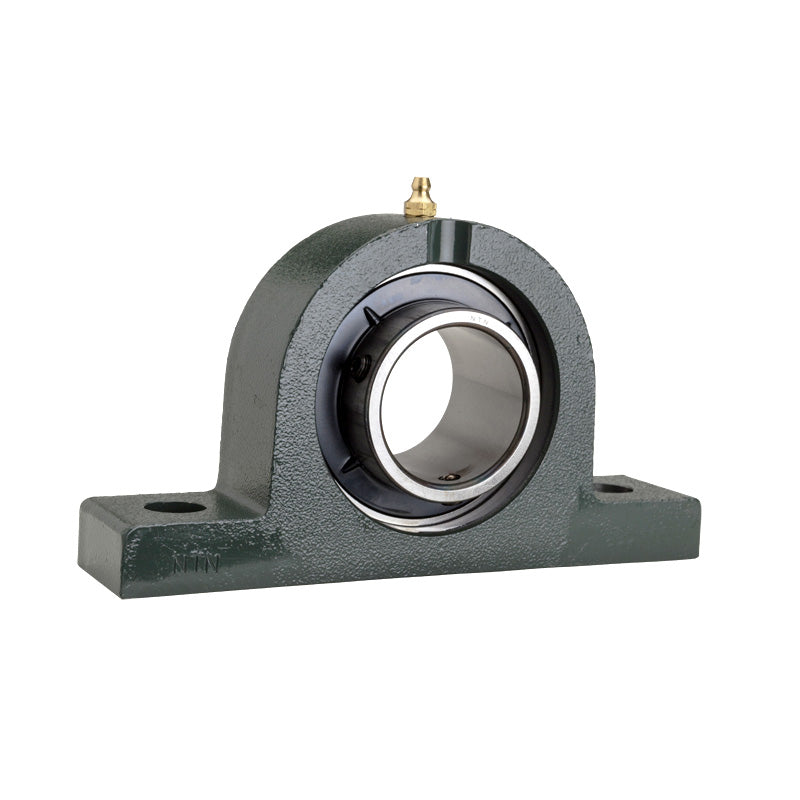

NTN UCPG212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
NTN UCPG212D1 Metric Cast Iron Two Bolt Pillow / Plummer Block Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price
$1,002.97
ex VAT
Regular price
Sale price
$1,002.97
ex VAT
In stock
Price Break
3+
$717.00
4+
$679.27
9+
$641.53
19+
$603.79
49+
$588.70
99+
$573.60
499+
$498.13
999+
$0.00
1999+
$0.00
2999+
$0.00
4999+
$0.00
Quantity
Couldn't load pickup availability
Share this product
Description
Description
UCPG200 Series 2 Bolt Cast Iron Pillow Block Housings: These bearing units are supplied with a fully sealed bearing insert fitted in the housing and include a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housings for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCPG
- Bolt Hole Centres:
- 184mm
Technical
Technical

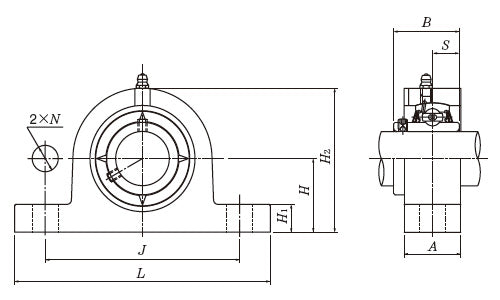

| Shaft diameter | 60mm |
|---|---|
| H | 69.8mm |
| L | 241mm |
| J | 184mm |
| A | 50mm |
| N | 19mm |
| H<sub>1</sub> | 25mm |
| H<sub>2</sub> | 138mm |
| B | 65.1mm |
| S | 25.4mm |
| Fixing bolt | M16 |
| Mass | 5.3 kg |
