• SNR UCPH205 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
  • SNR
1 2

SKU: UCPH205-SNR

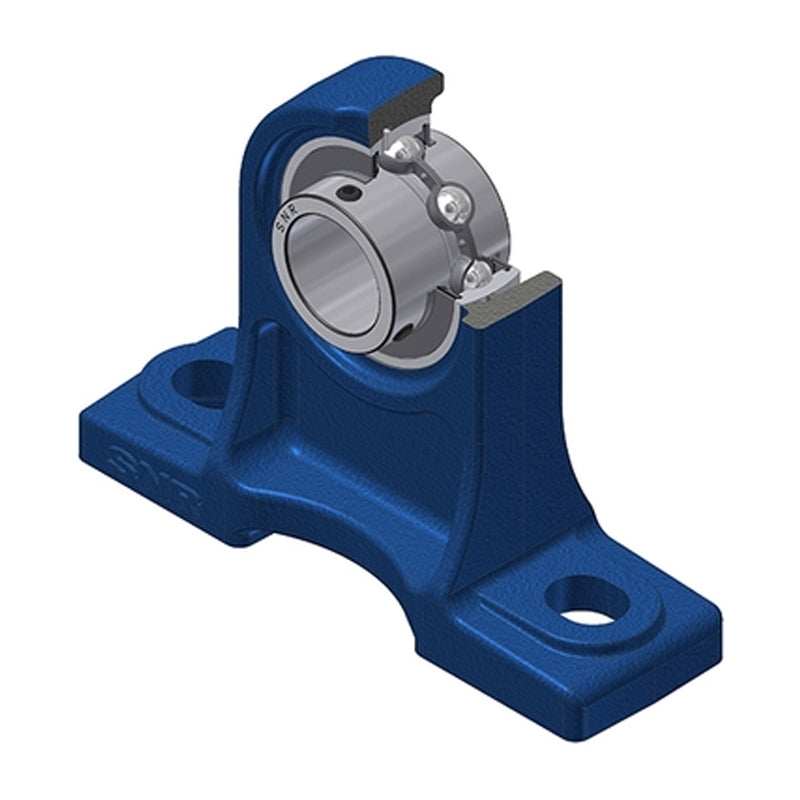

SNR UCPH205 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days

SNR UCPH205 Metric Cast Iron High Centre Height Two Bolt Pillow / Plummer Block Housing with 25mm Bore Insert - Allow 2-3 Days
$34.15 ex VAT
$34.15 ex VAT
Sale Sold out

In stock

Price Break
3+ $22.88
4+ $21.59
9+ $21.33
19+ $21.08
49+ $20.82
99+ $20.56
499+ $19.28
999+ $19.02
1999+ $18.76
2999+ $18.51
4999+ $17.99

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
SNR - High Quality
Inside Diameter:
25mm
Style:
UCPH
Bolt Hole Centres:
34mm
Technical
--- Dimensions
Shaft diameter 25mm
A 50mm
A1 24mm
B 34mm
H 80mm
H1 16mm
H2 114mm
J 105mm
L 140mm
L1 50mm
N 13mm
N1 19mm
S 14.3mm
G M6x1
--- Load rating
Dynamic load C 14 kN
Static load C0 7.88 kN
--- Unit information
Operating temperature min. -20°C
Operating temperature max. 100°C
Recommended tightening torque for set screw 5.5 Nm
Mass 1.21 kg
